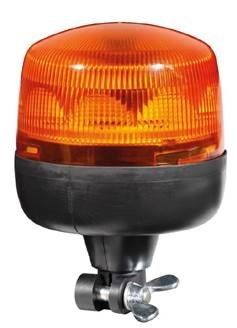

Rota LED beacon | HELLA

Product features

Long service life

The lamp has no moving parts, such as a rotating mirror, etc. As a result there is no wear, and the lamp has a maximum of reliability.

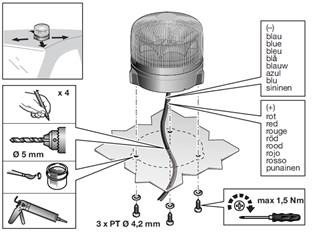

Installation information

During installation of the fixed body variant make sure that the cables passage to the Interior is sealed. This can be done, for example, with a suitable rubber grommet or body sealant.

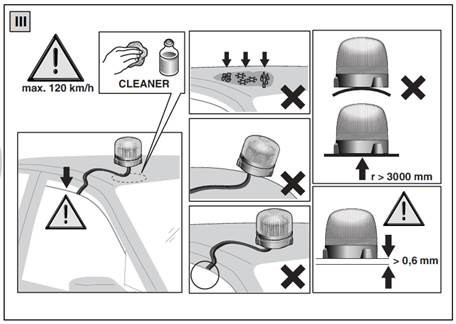

When using the magnetic variant, a few points should be observed, see Figure

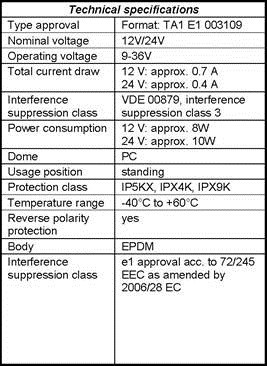

Technical notes

Attention:

The beacon must be protected with a 5A fuse!

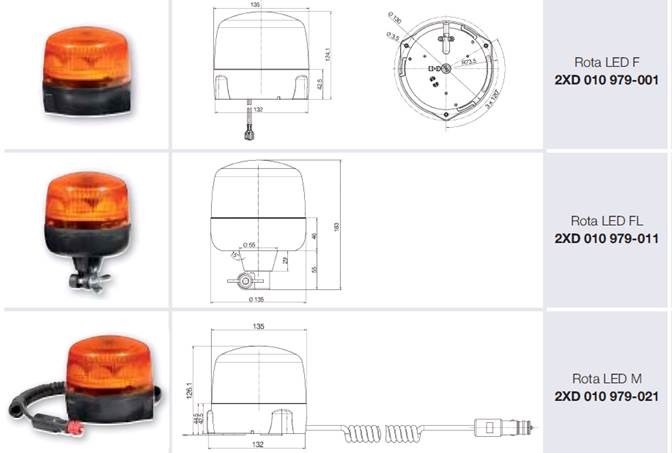

Product overview
