2025-01-09
LED fog lamp R80
The R80 LED fog lamp is a practical and durable lighting solution, designed to perform. Featuring a compact 90 mm design and innovative LED reflector technology, this lamp offers wide and homogenous illumination, enhancing visibility in foggy and challenging weather conditions.
Constructed with a sturdy plastic housing and a resilient polycarbonate lens, the R80 LED fog lamp is built to endure harsh environments. It operates efficiently within a broad voltage range of 9 to 32 volts, making it compatible with both 12 V and 24 V vehicle systems. This versatility ensures that the R80 LED fog lamp is an ideal choice for various vehicle installations, offering an easy upgrade from traditional halogen lamps to LED technology.
Rated with IP 5K9K and IP 5K4K certifications, the fog lamp is resistant to high-pressure water jets and dust infiltration. It operates at temperature extremes from -40°C to +60°C reliably. Additionally, its high vibration resistance makes it suitable for rugged applications, such as construction machinery and agricultural vehicles.
The lamp is available with FEP and DEUTSCH DT connectors for ease of integration. It also meets ECE and SAE standards, and has as well the CCC certification.
Offering a balance between performance and cost efficiency, the R80 LED fog lamp provides a reliable and effective lighting solution for a wide range of vehicles.
The R80 LED fog lamp is a practical and durable lighting solution, designed to perform. Featuring a compact 90 mm design and innovative LED reflector technology, this lamp offers wide and homogenous illumination, enhancing visibility in foggy and challenging weather conditions.
Constructed with a sturdy plastic housing and a resilient polycarbonate lens, the R80 LED fog lamp is built to endure harsh environments. It operates efficiently within a broad voltage range of 9 to 32 volts, making it compatible with both 12 V and 24 V vehicle systems. This versatility ensures that the R80 LED fog lamp is an ideal choice for various vehicle installations, offering an easy upgrade from traditional halogen lamps to LED technology.
Rated with IP 5K9K and IP 5K4K certifications, the fog lamp is resistant to high-pressure water jets and dust infiltration. It operates at temperature extremes from -40°C to +60°C reliably. Additionally, its high vibration resistance makes it suitable for rugged applications, such as construction machinery and agricultural vehicles.
The lamp is available with FEP and DEUTSCH DT connectors for ease of integration. It also meets ECE and SAE standards, and has as well the CCC certification.
Offering a balance between performance and cost efficiency, the R80 LED fog lamp provides a reliable and effective lighting solution for a wide range of vehicles.

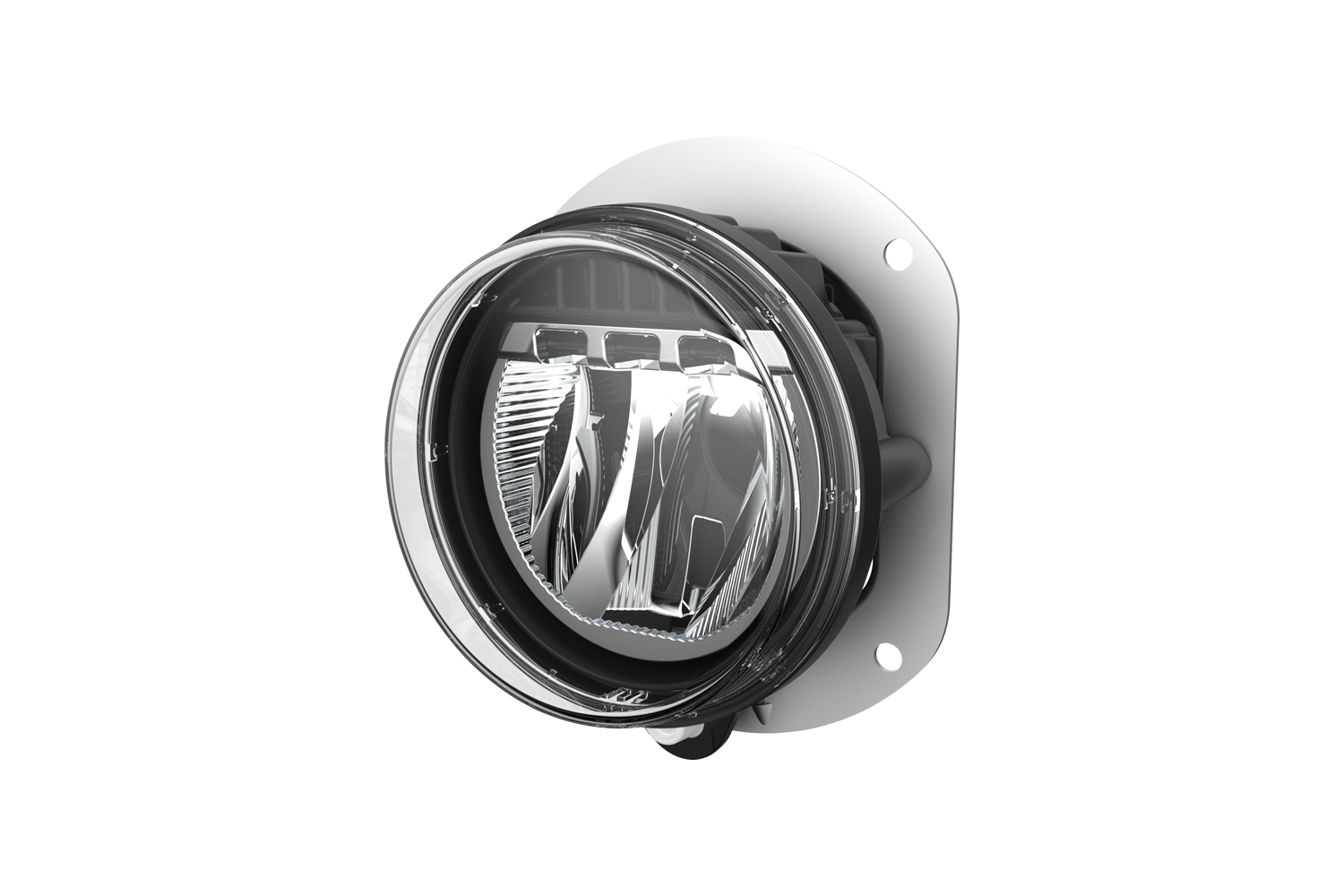

LED fog lamp R80

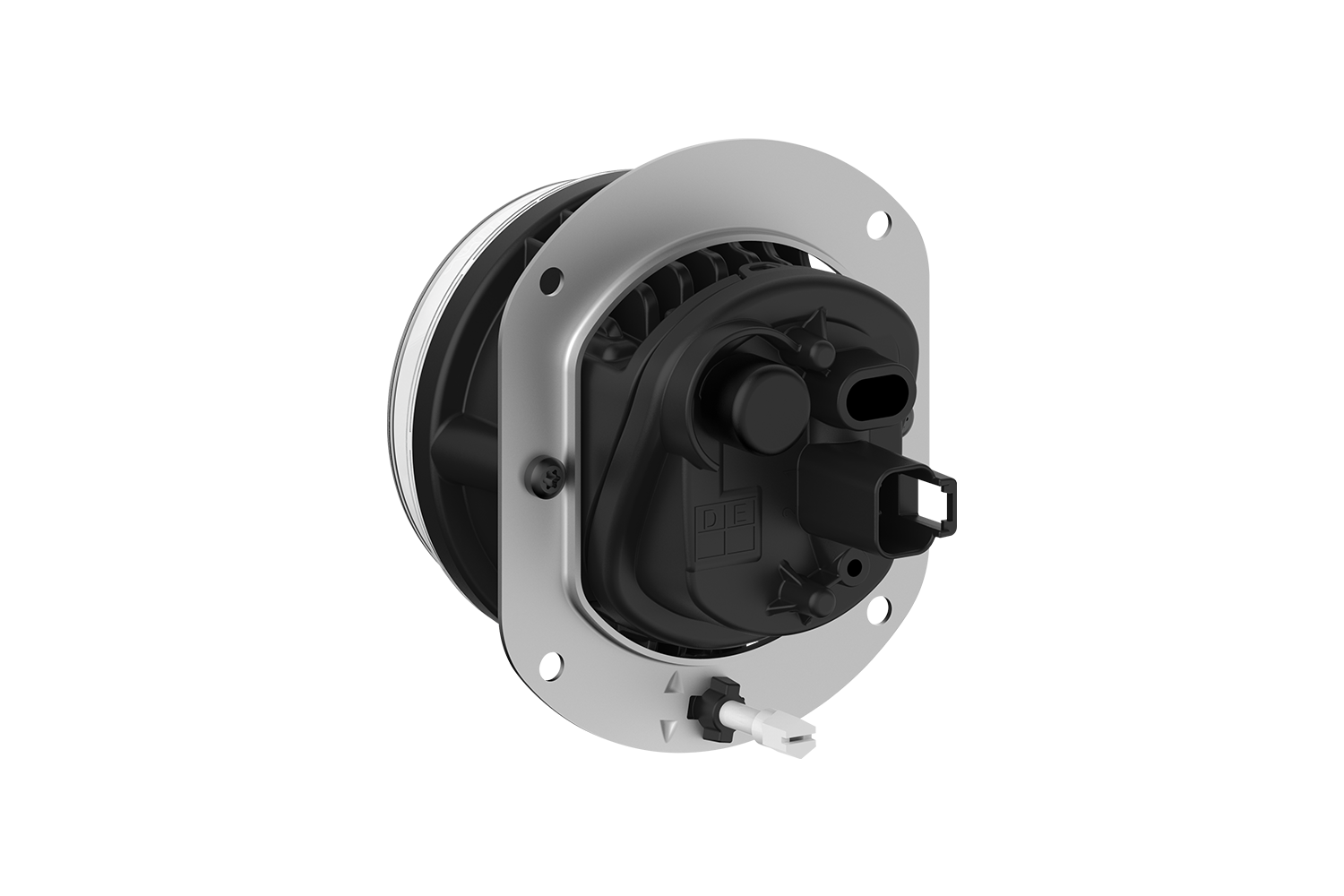

LED fog lamp R80 side back view

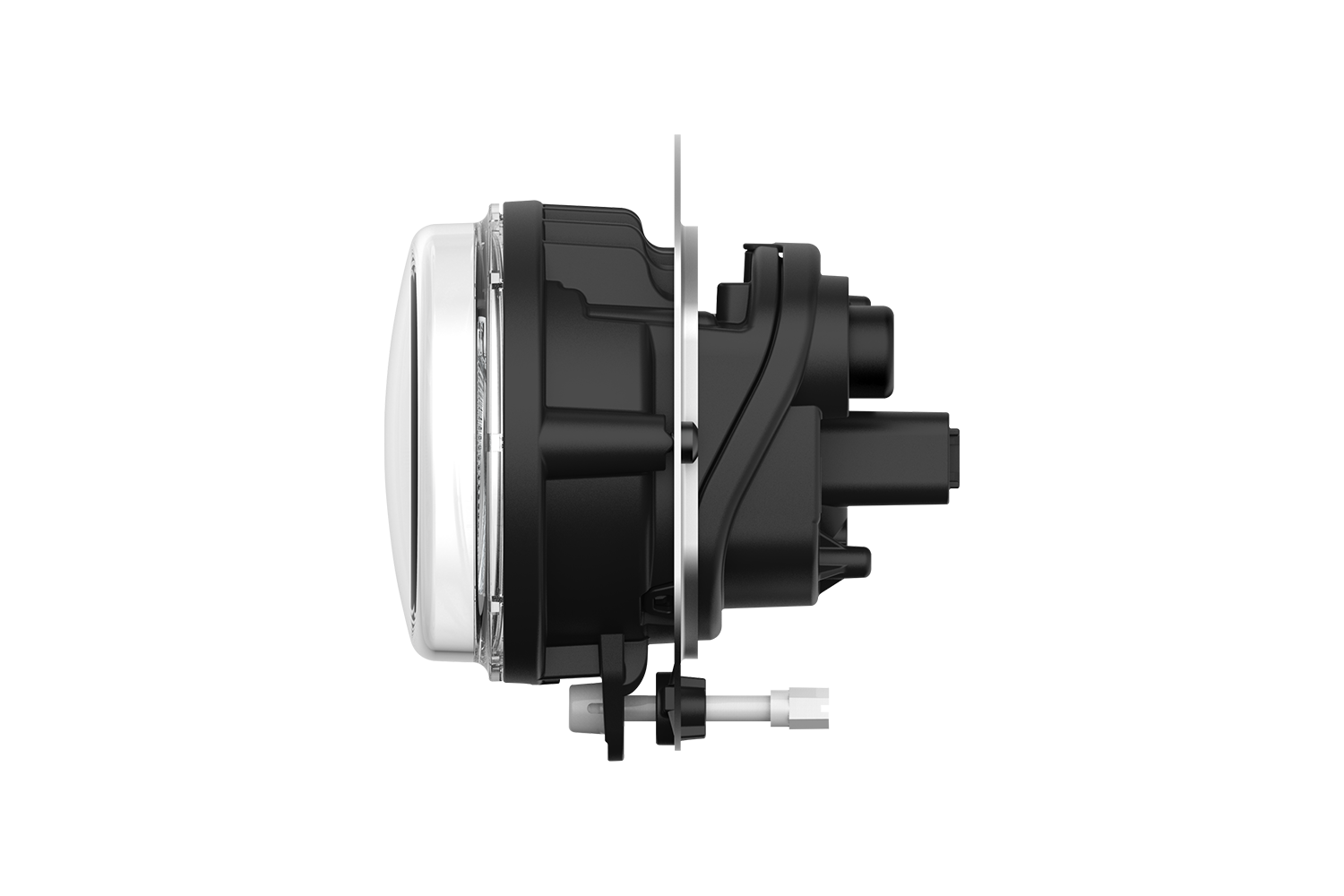

LED fog lamp R80 side view
Dimensional sketch of the LED fog lamp R80
Technical Data
| Operating voltage | Multivoltage (9 – 32 V) |
| Rated voltage | 12 V or 24 V |
| Current consumption | 12 V: Ø 3 A 24 V: Ø 3 A |
| Power consumption | 12 V: Ø 8.1 W 24 V: Ø 8.7 W |
| Light function | Front fog lamp |
| Light source | LED |
| Material | Housing: PC + ABS, black Cover lens: PC transparent |
| Temperature range | -40 °C to +60 °C |
| Protection class | IP 5K9K, IP 5K4K |
| Approval | SAE J583, ECE-R149.01 CCC GB 4660-2017 INDIA AIS-012 (part 1) 2014 |
| Compliant | ECE-R10.06, CISPR 25 Class 5 |
| Mounting | With carrier frame (back / front) |
| Connection | 2-pin DEUTSCH DT connector or 2-pin FEP connector |
Program Overview
| Type of mounting | Connection | Variant | Part number |
|---|---|---|---|
| Screws mounting from the back and front | FEP connector | ECE / SAE | 1N0 017 050-101 |
| DEUTSCH connector | 1N0 017 050-001 |
