Jump Start Terminal for mining
Heavy duty, high capacity jump-start connectors for vehicles and equipment, ideal for use where access to terminals is restricted or dangerous. Eliminates chance of cross polarity connections though the specially shaped plug and reduces chance of sparking and possible ignition of flammable materials. Mounting bracket, protective cap, and kit containing the terminal, bracket and are also available.
Heavy duty, high capacity jump-start connectors for vehicles and equipment, ideal for use where access to terminals is restricted or dangerous. Eliminates chance of cross polarity connections though the specially shaped plug and reduces chance of sparking and possible ignition of flammable materials. Mounting bracket, protective cap, and kit containing the terminal, bracket and are also available.

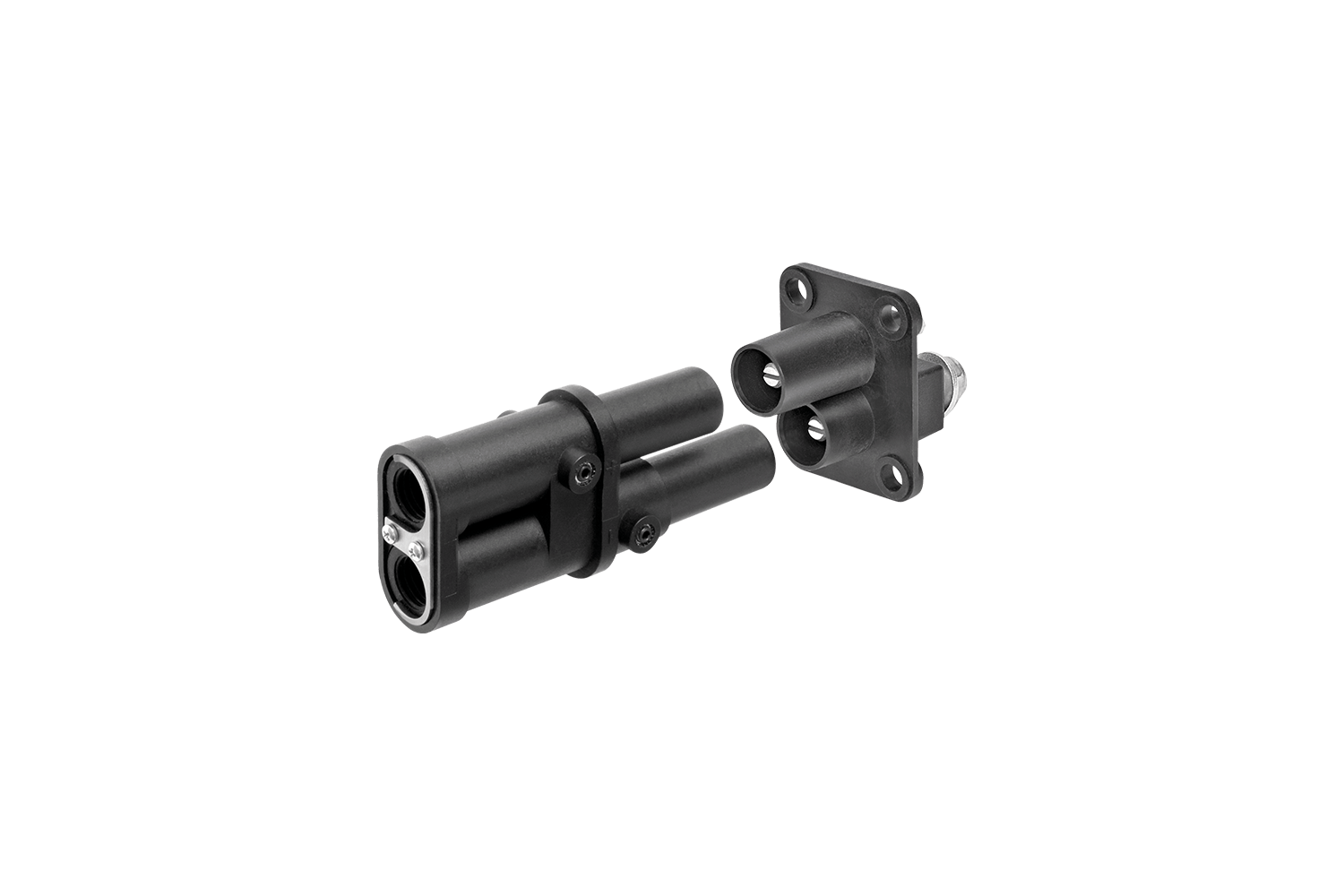

The Jump Start Terminal.

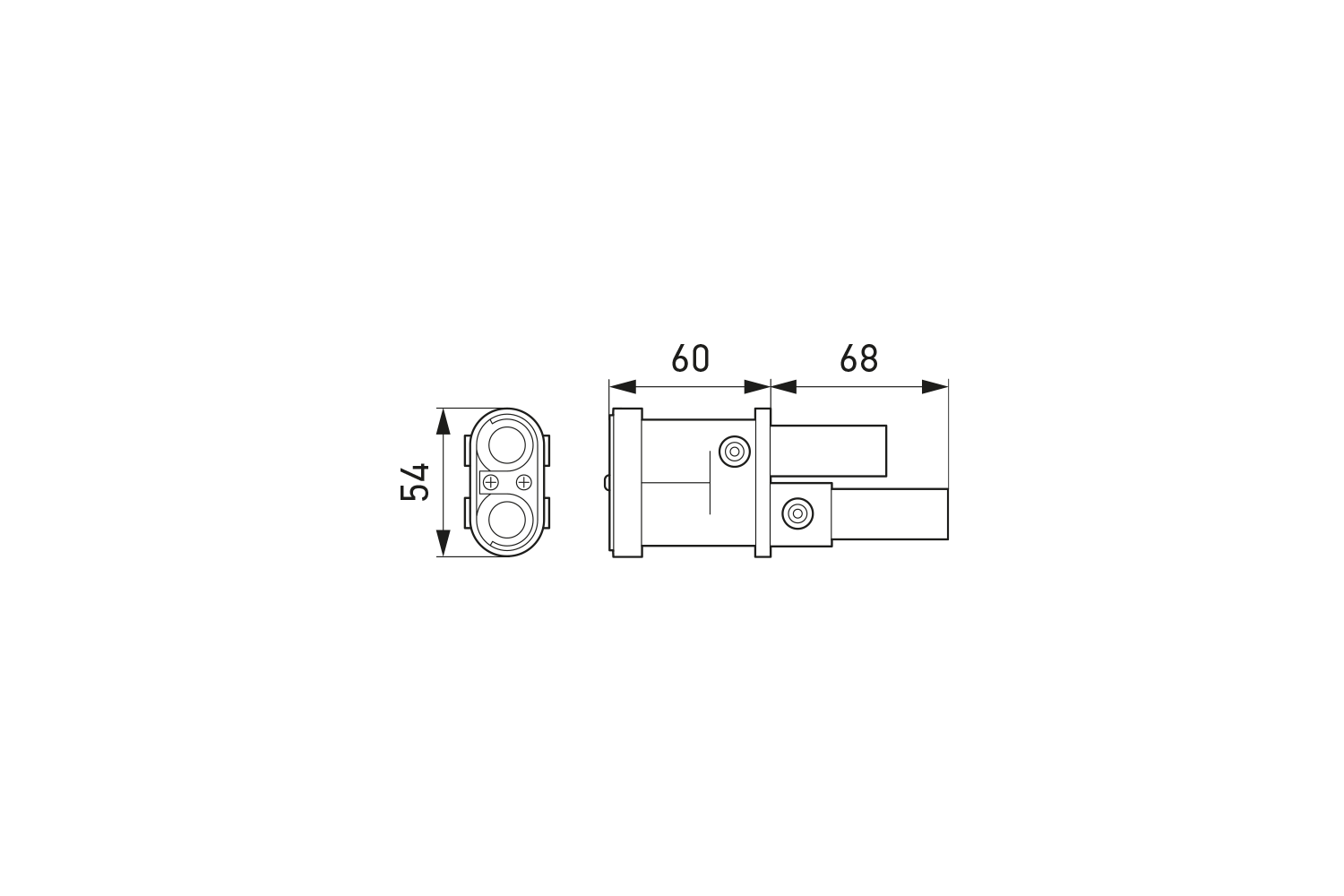

Technical drawing of the Jump Start Terminal.
Technical Data
| Material | High impact ABS plastic, copper (silver brass coated) terminal |
| Connection | Suitable for 70 mm² cable, connection via crimping and soldering process |
Program Overview
| Jump Start Plug* | |
|---|---|
| Description | Part number |
| High impact ABS plastic, copper (silver brass coated) terminals, suitable for 70 mm² cable, connection via crimping and soldering process |
8JA 177 305-101 |
| Jump Start Terminal* | ||
|---|---|---|
| Variant | Description | Part number |
| Jump Start Terminal | Removes risk of terminal crossing, high impact ABS, plastic zinc coated terminals | 8JB 177 305-001 |
| Terminal Kit | Kit of jump start terminal, bracket and cap | 8HG 177 305-031 |
| Terminal Bracket | Bracket for mounting jump start terminal to vehicle body | 8HG 177 305-021 |
| Terminal Cap | Cap to protect terminal from external environment when not in use | 9HD 177 305-011 |
*No IMDS data available, therefore not available in Germany.
