Modular Lightbar
In addition to its far-reaching warning function by means of a flashing amber signal, the modular roof bar offers other additional functions depending on the variant and impresses with its modern, flat design. The roof bar consists of the technical base, the side parts with amber warning light, and sometimes additional alley light as well as the middle part, in which different single modules are located. The Modular Lightbar is just 52 mm tall and the product can either be screwed directly to the vehicle roof or mounted slightly higher using a bracket included in the scope of delivery.
The standard base of the Modular Lightbar is controlled with a wired control unit. In addition, a Bluetooth-enabled base has been developed, enabling wireless operation for the first time. This wireless operation cannot be retrofitted, but is a fundamental decision when choosing the product.
All individual modules of the roof bar contain energy-efficient LEDs and, in addition to classic warning lighting, also offer additional functions such as working light or generate a tail light, stop light, or direction indicator light. If a stone chip or other damage occurs, the modular design of the center section facilitates quick repair. The individual modules are available as spare parts on request and can be replaced very easily. The self-explanatory remote control allows for optimal control of the various light functions thanks to visual feedback.
Three different lengths with preconfigured center section are available, with their carefully selected individual modules suitable for diverse applications. Depending on the order quantity, other configurations and lengths are available on request in addition to the variants shown.
In addition to its far-reaching warning function by means of a flashing amber signal, the modular roof bar offers other additional functions depending on the variant and impresses with its modern, flat design. The roof bar consists of the technical base, the side parts with amber warning light, and sometimes additional alley light as well as the middle part, in which different single modules are located. The Modular Lightbar is just 52 mm tall and the product can either be screwed directly to the vehicle roof or mounted slightly higher using a bracket included in the scope of delivery.
The standard base of the Modular Lightbar is controlled with a wired control unit. In addition, a Bluetooth-enabled base has been developed, enabling wireless operation for the first time. This wireless operation cannot be retrofitted, but is a fundamental decision when choosing the product.
All individual modules of the roof bar contain energy-efficient LEDs and, in addition to classic warning lighting, also offer additional functions such as working light or generate a tail light, stop light, or direction indicator light. If a stone chip or other damage occurs, the modular design of the center section facilitates quick repair. The individual modules are available as spare parts on request and can be replaced very easily. The self-explanatory remote control allows for optimal control of the various light functions thanks to visual feedback.
Three different lengths with preconfigured center section are available, with their carefully selected individual modules suitable for diverse applications. Depending on the order quantity, other configurations and lengths are available on request in addition to the variants shown.

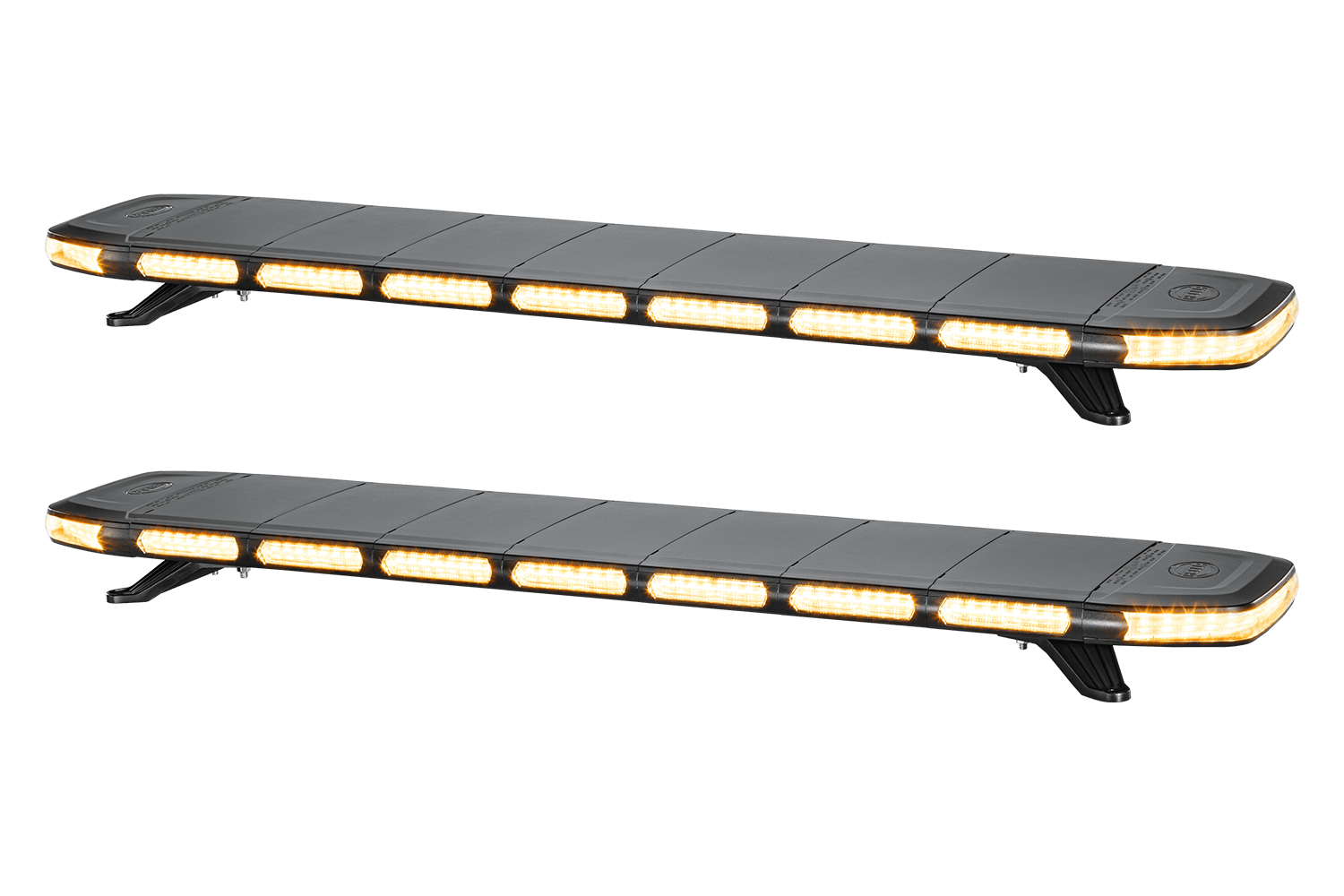

The Modular Lightbar with a length of 1,066.8 mm - front side: 5 x amber warning light - back side: 5 x amber warning light - side part with amber warning light.
As an additional option, the roof bar is available with a length of 1,371.6 mm - front as well as rear 7 x amber warning light - side part with amber warning light.

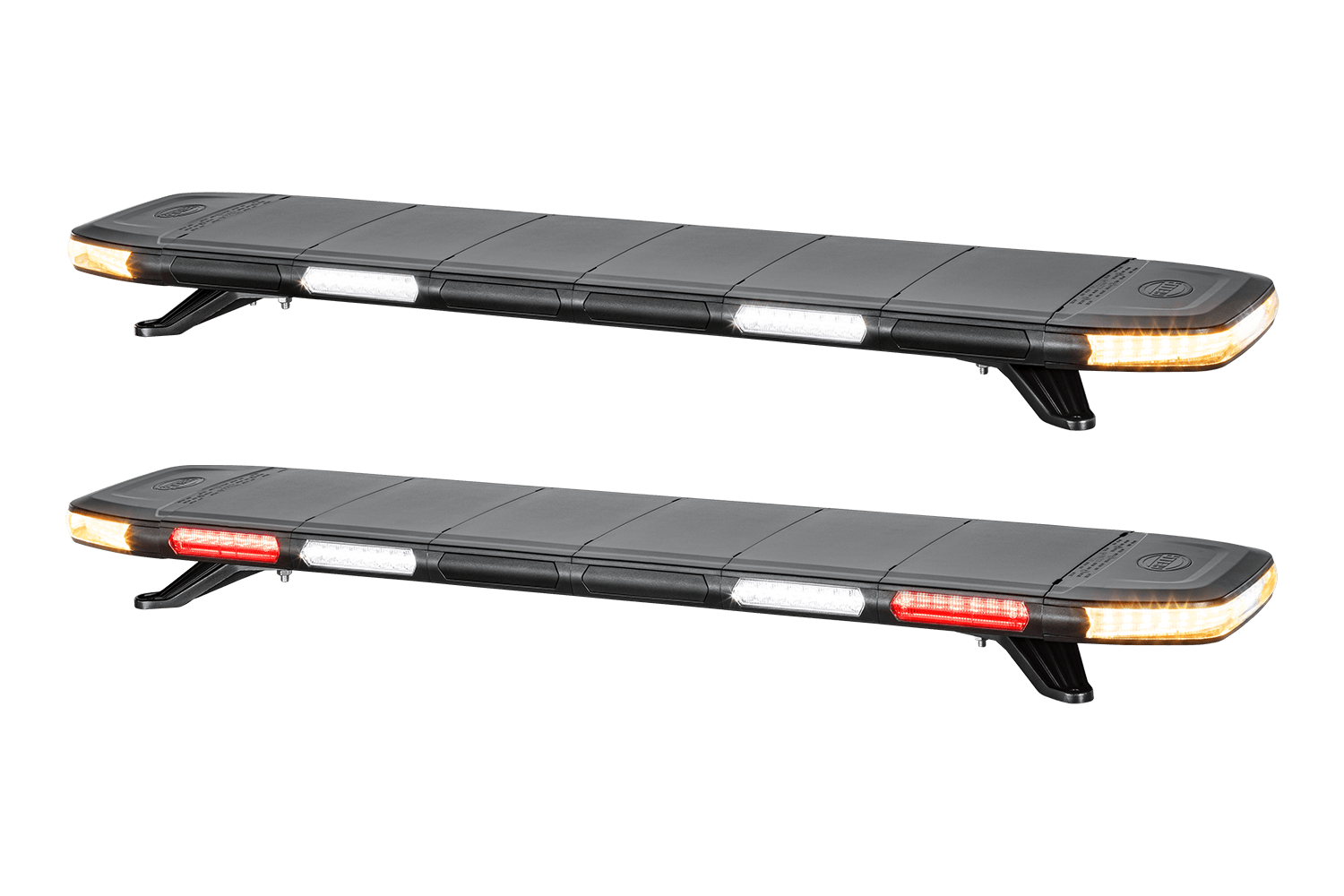

With six modules in the middle section, the Modular Lightbar measures 1,219.2 mm - front: 2 x work light, 4 x black cover - back side: 2 x work light, 2 x tail-stop-indicator module, 2 x black cover - side part with amber warning light and alley light.

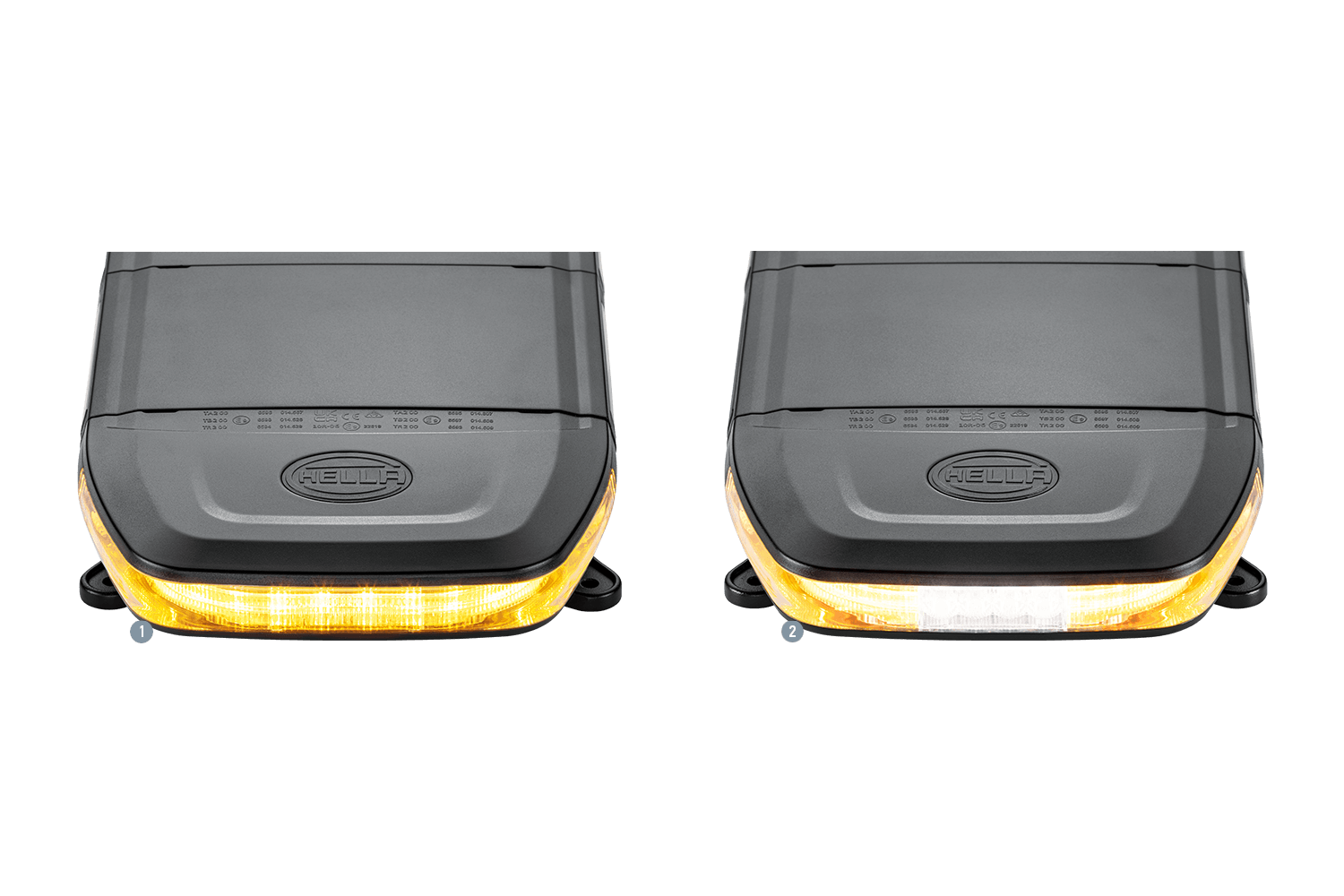

The side part is either equipped with amber warning light (1) or amber warning light and alley light (2), depending on the variant.

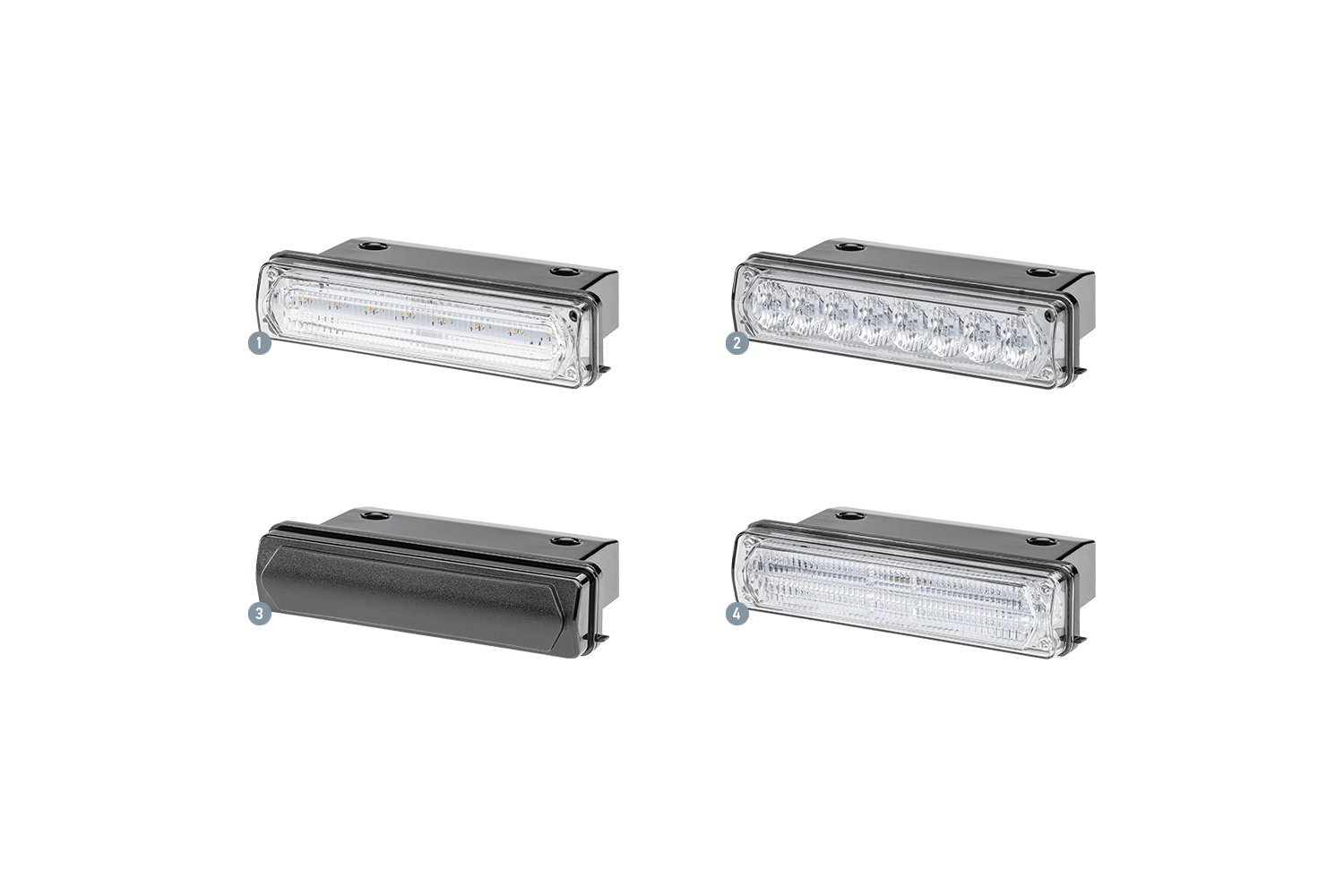

A variety of individual modules are used: (1) amber warning lighting, (2) work light, (3) black cover, (4) tail-stop- indicator module.

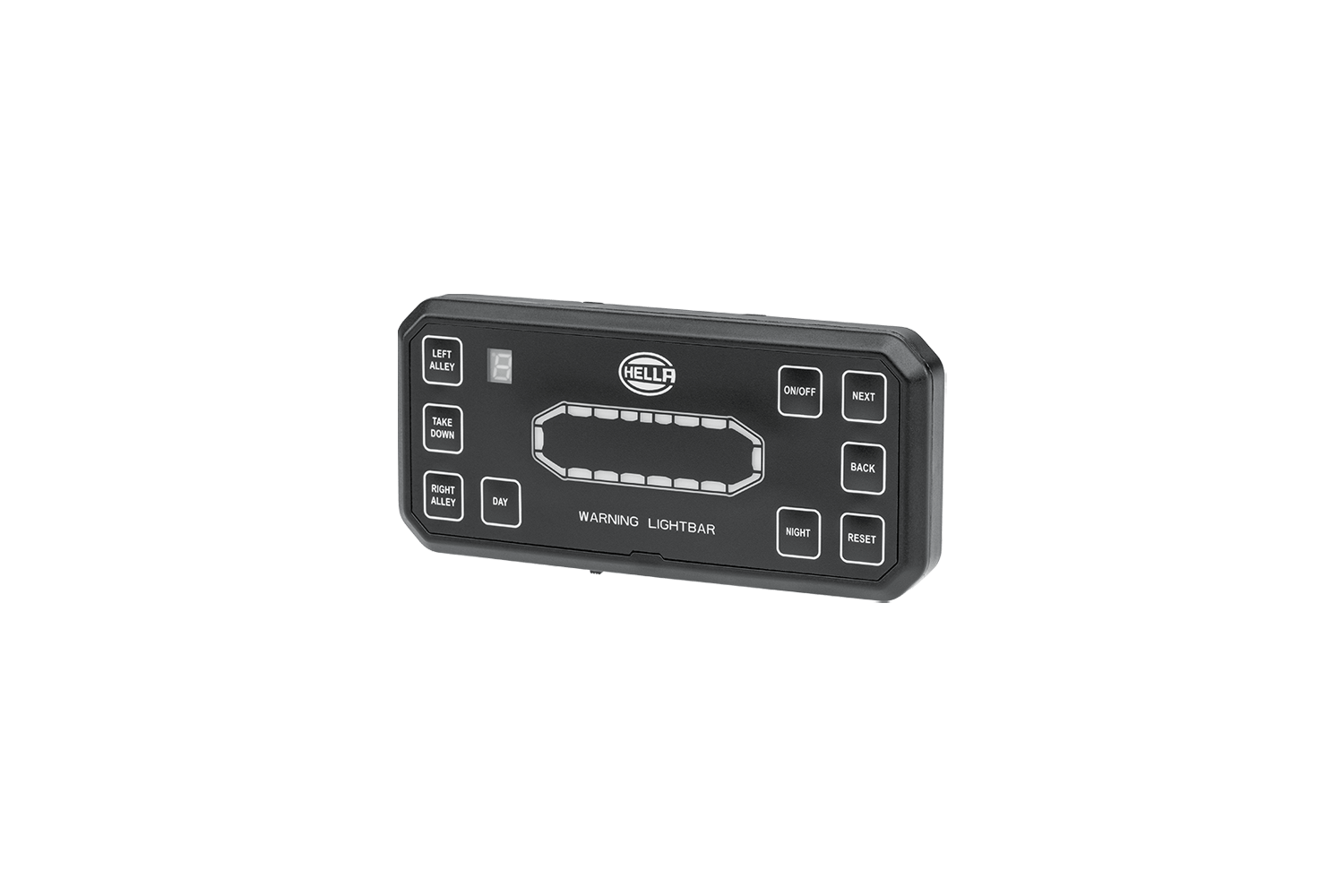

The control unit is included in the scope of delivery of the corresponding configurations and, depending on the variant, is wired or equipped with Bluetooth. It is intuitive to use and provides visual feedback on the functions that are switched on.

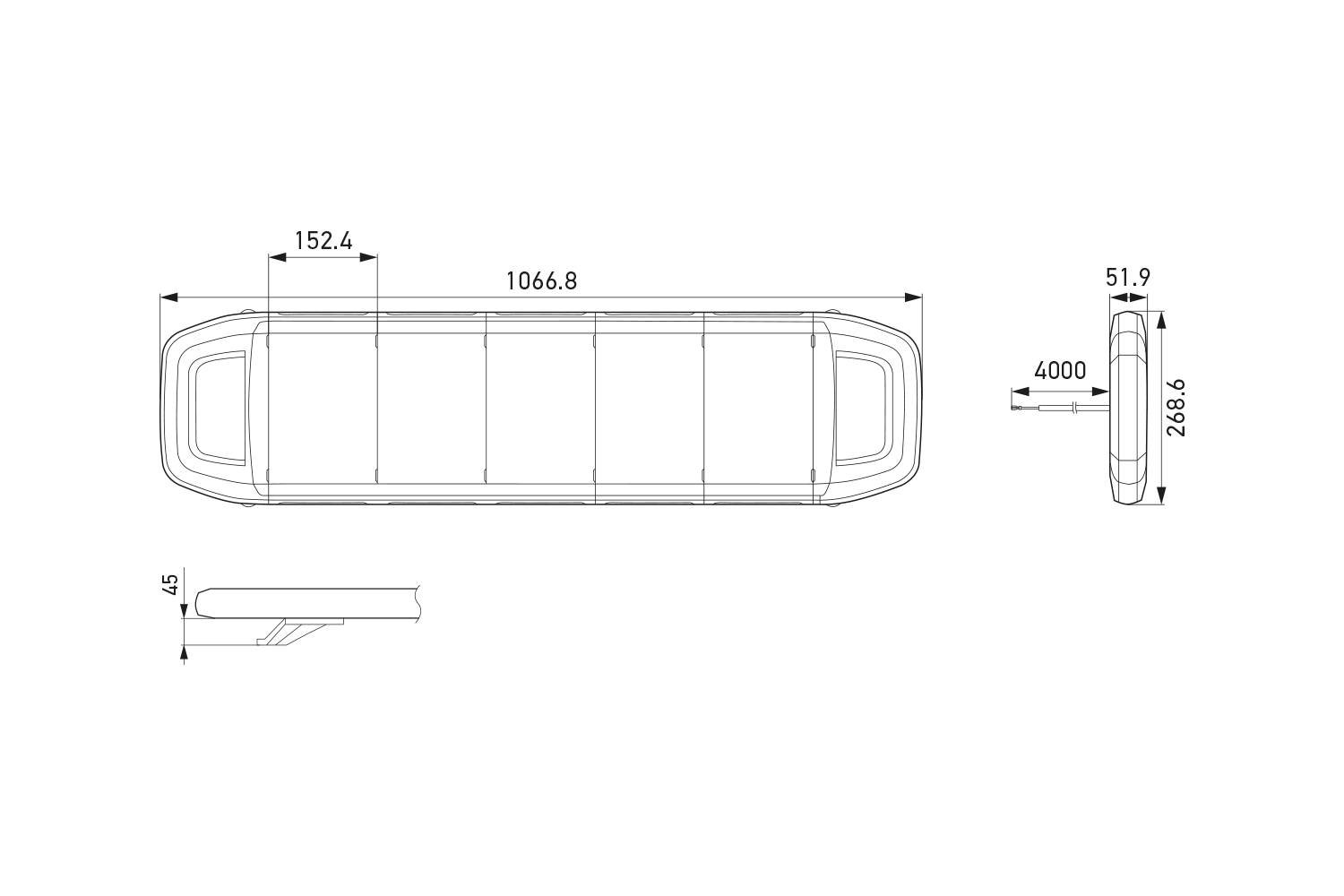

Technical drawing shows the Modular Lightbar with a length of 1,066.8 mm.

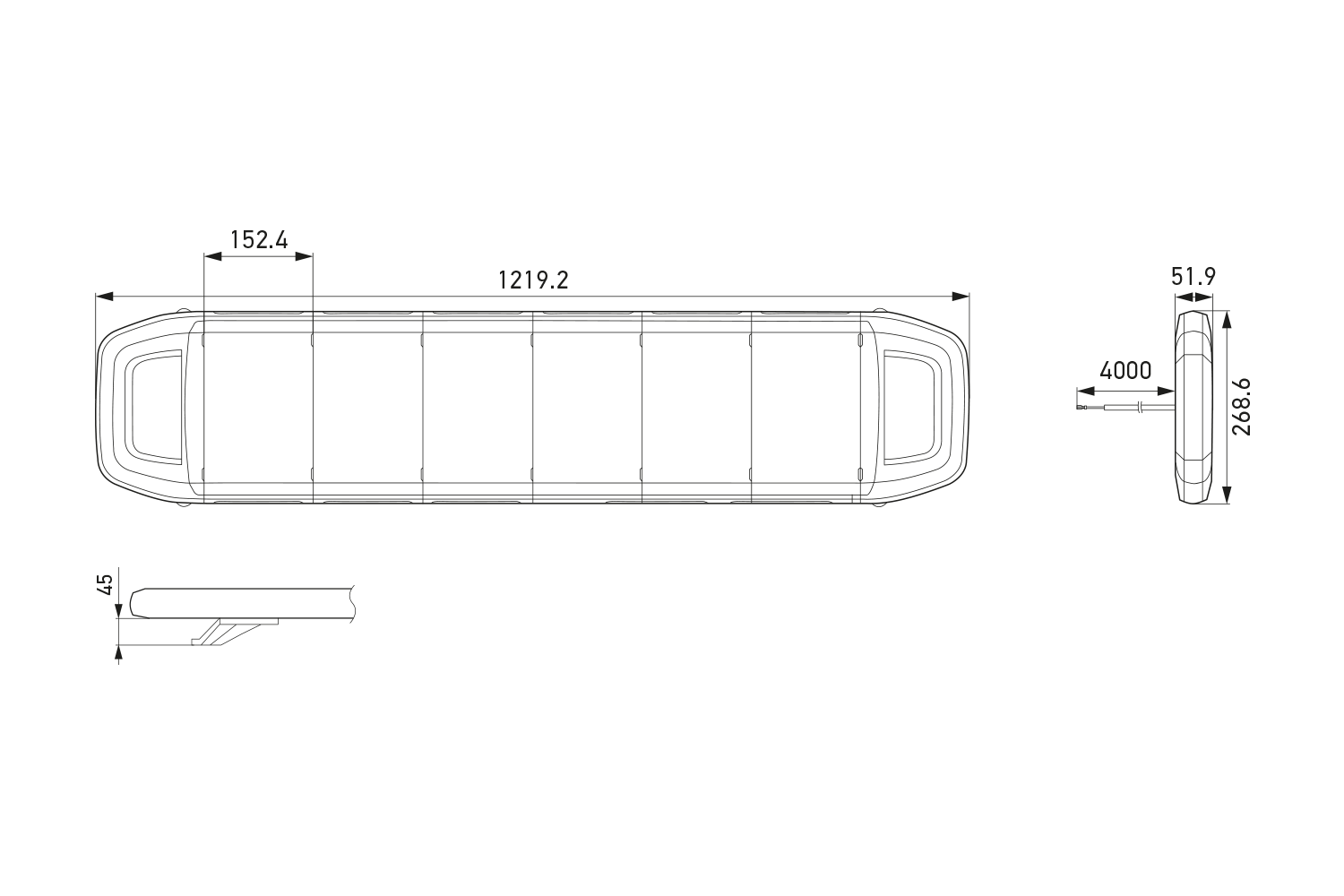

In addition, the roof bar is also available in a length of 1,219.2 mm.

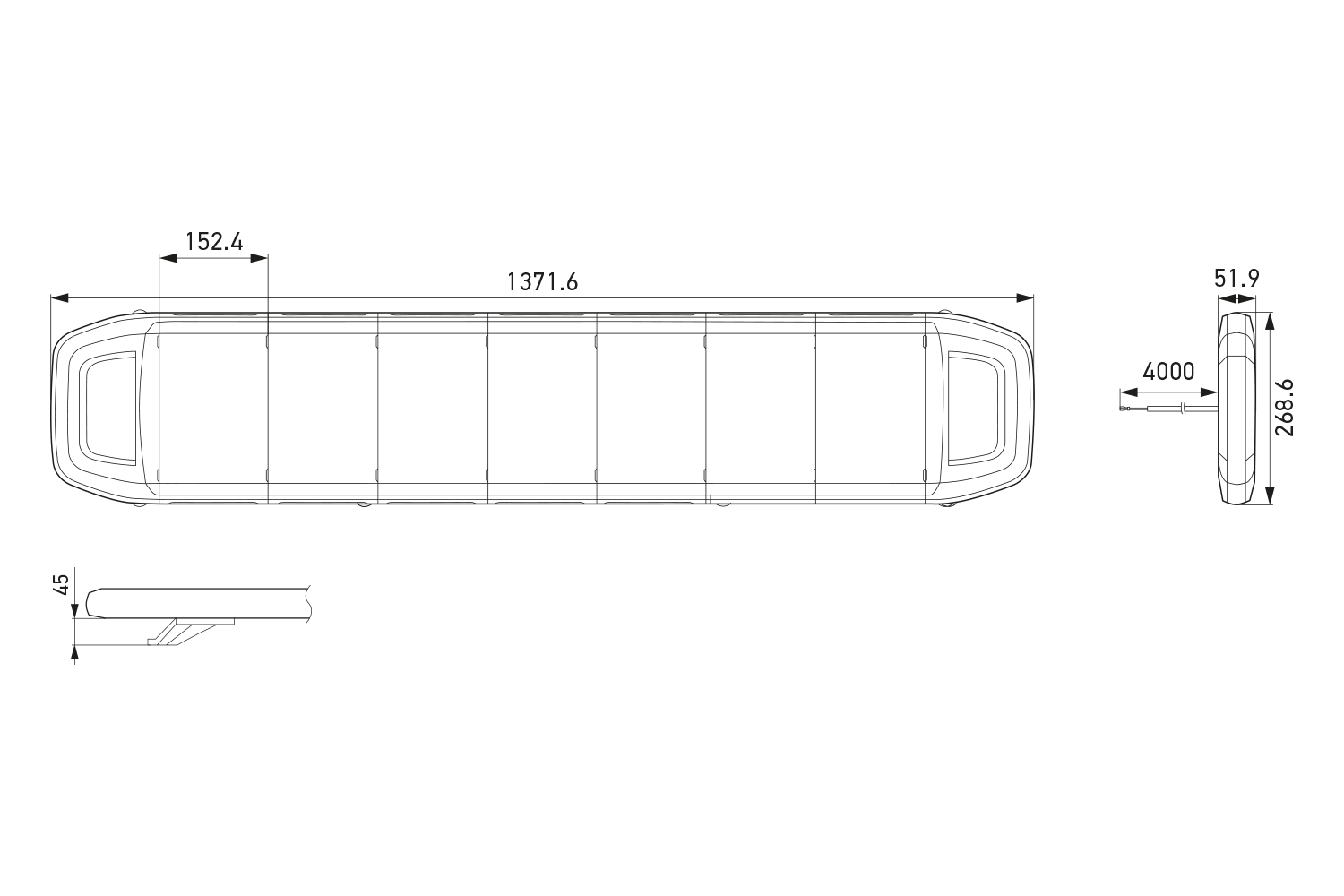

Another length offered is the Modular Lightbar with 1,371.6 mm.
Technical Data
| Operating voltage | Multi-voltage (10-30 V) |
| Rated voltage | 12 V/ 24V |
| Current consumption | depending on the product equipment |
| Power consumption | depending on the product equipment |
| Light source | LED |
| Temperature range | -40 °C to +65 °C |
| Protection class | IP 6K4K, IP XK9 |
| Type approval | ECE-R65 Class 2, ECE-R148, RCM |
| EMC protection | ECE-R10, CISPR 25 class 3 |
| Connection | 4,000 mm cable with open cable end |
Program Overview
| Length | Center modules | Control unit | Power consumption | Side part | Part number |
|---|---|---|---|---|---|
| 1,066.8 mm | Front: 5 x amber warning light, rear: 5 x amber warning light | Wired | 80 W | with amber warning light | 2RL 014 567-011 |
| 1,066.8 mm | Front: 5 x amber warning light, rear: 5 x amber warning light | Wireless | 80 W | with amber warning light | 2RL 014 567-061 |
| 1,371.6 mm | Front: 7 x amber warning light, rear: 7 x amber warning light | Wired | 90 W | with amber warning light | 2RL 014 567-021 |
| 1,219.2 mm | Front: 2 x work light, 4 x black cover, rear: 2 x work light, 2 x tail-stop-indicator module, 2 x black cover | Wired | 105 W | with amber warning light and alley light | 2RL 014 607-011 |
