RokLUME 380N
Gigantic light: The HELLA RokLUME 380N work lamp is particularly suited for extreme operating conditions, for example in the mining sector, due to its outstanding light output and robust design.
With up to 7,800 lumens of light output, the work area is extremely well illuminated. The RokLUME 380N is available with five different light distributions, offering high flexibility for all requirements. In addition to variants for close-range and long-range illumination, it is also available as extra-wide and pencil beam illumination. A variant with the innovative HELLA ZEROGLARE illumination is also available, which effectively prevents the glare of oncoming drivers through special light control.
In addition to the daylight-like light colour, all illuminations are also available with an amber light colour specially designed for fog, dust, and snow.
Thanks to the robust die-cast aluminium housing with NanoSafe coating, the impact-resistant plastic cover lens, and the absolute dust and water tightness, the work lamp can withstand even extreme operating conditions. It is ECE-approved, multi-voltage capable, and polarity reversal protected.
Gigantic light: The HELLA RokLUME 380N work lamp is particularly suited for extreme operating conditions, for example in the mining sector, due to its outstanding light output and robust design.
With up to 7,800 lumens of light output, the work area is extremely well illuminated. The RokLUME 380N is available with five different light distributions, offering high flexibility for all requirements. In addition to variants for close-range and long-range illumination, it is also available as extra-wide and pencil beam illumination. A variant with the innovative HELLA ZEROGLARE illumination is also available, which effectively prevents the glare of oncoming drivers through special light control.
In addition to the daylight-like light colour, all illuminations are also available with an amber light colour specially designed for fog, dust, and snow.
Thanks to the robust die-cast aluminium housing with NanoSafe coating, the impact-resistant plastic cover lens, and the absolute dust and water tightness, the work lamp can withstand even extreme operating conditions. It is ECE-approved, multi-voltage capable, and polarity reversal protected.

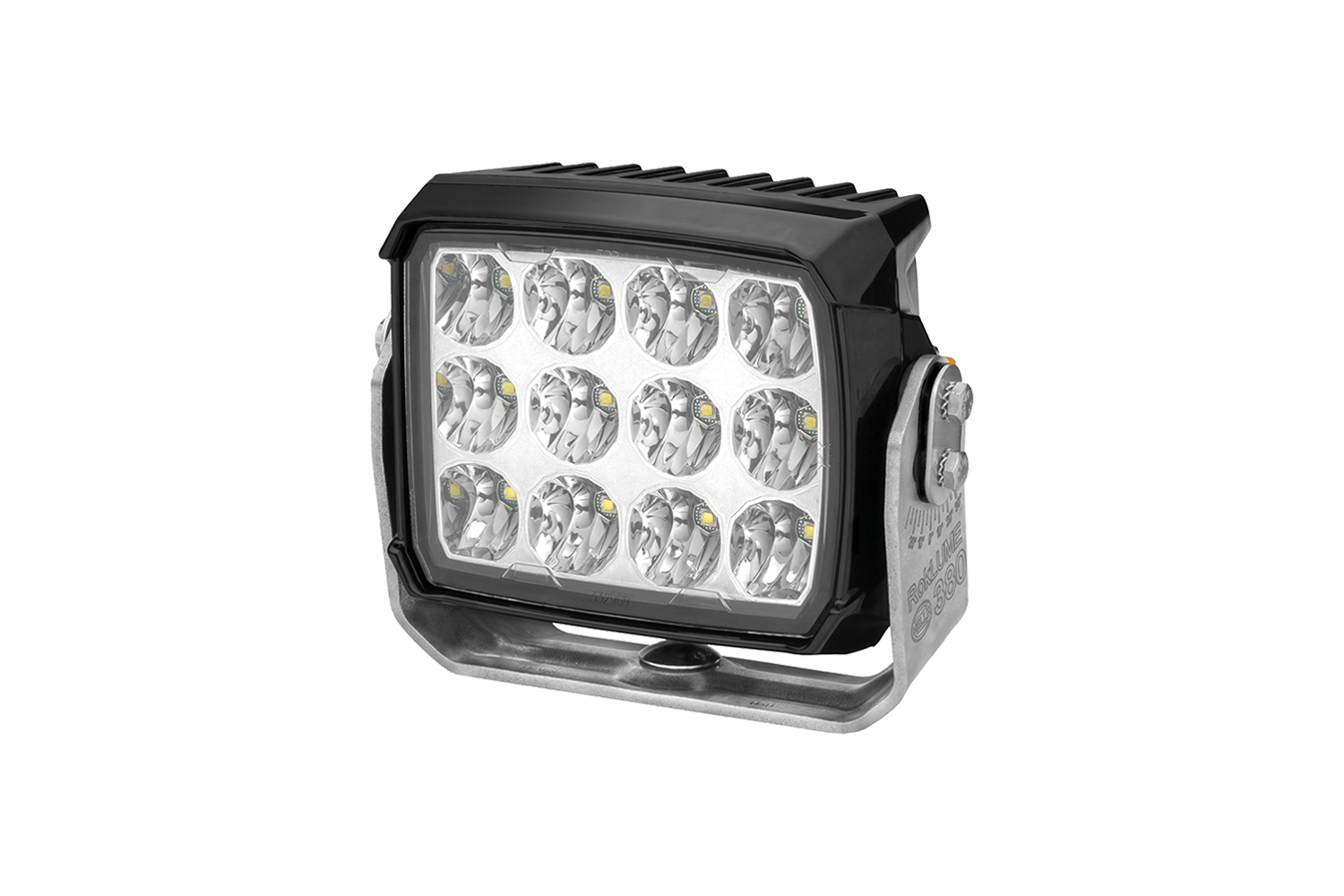

Photo of the long-range illumination of the RokLUME 380N

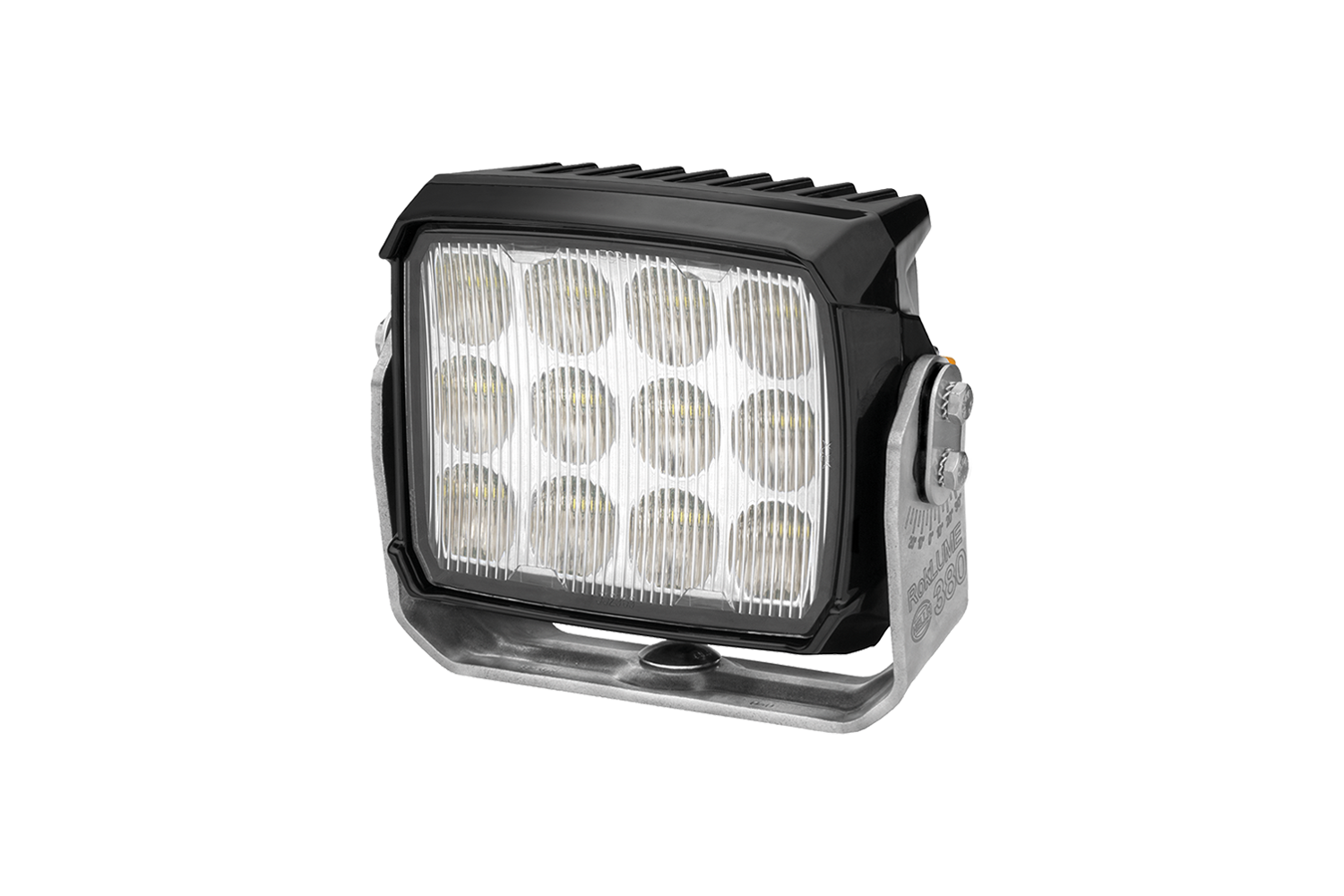

Photo of the close-range illumination of the RokLUME 380N

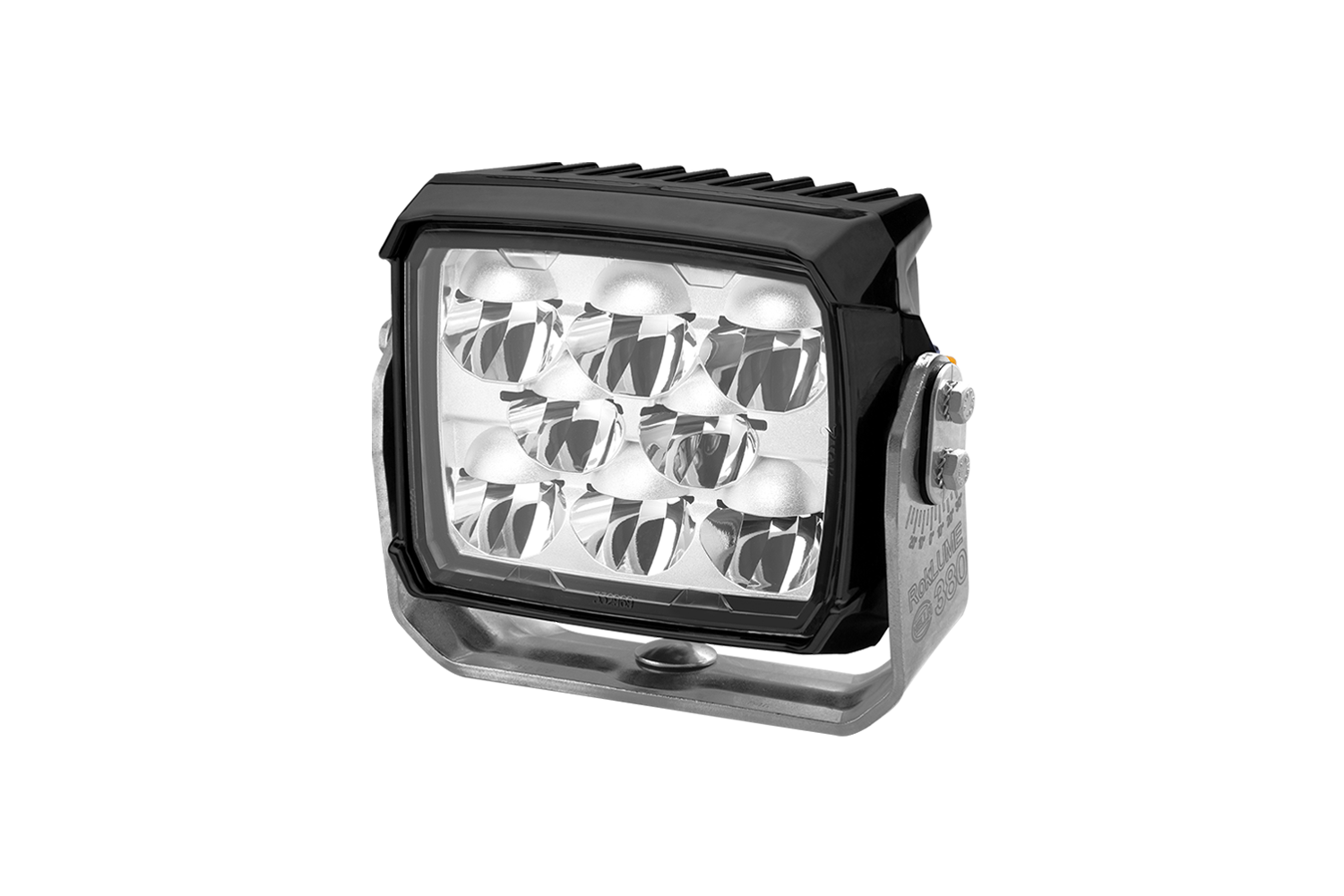

Photo of the ZEROGLARE illumination of the RokLUME 380N

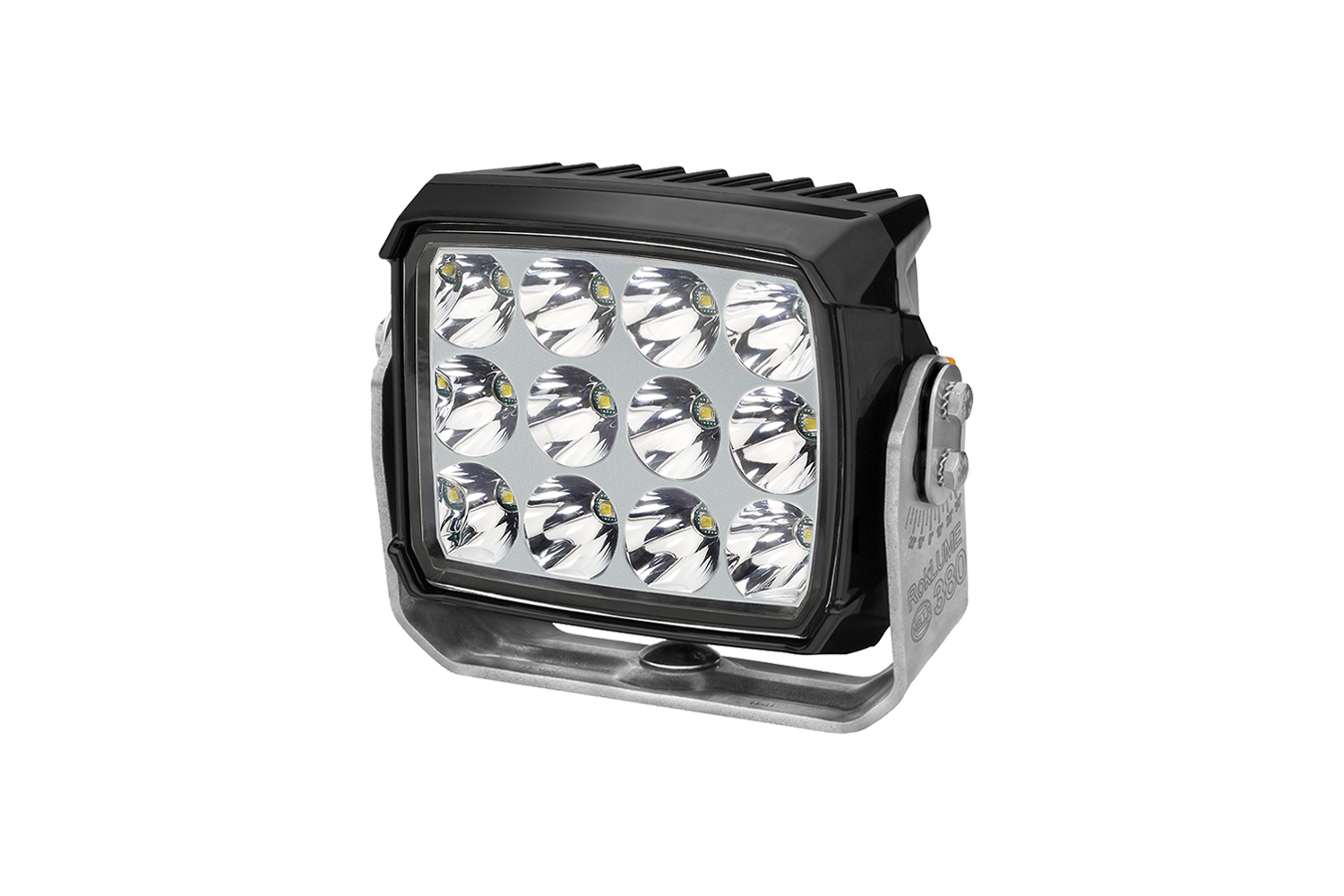

Photo of the pencil beam illumination of the RokLUME 380N

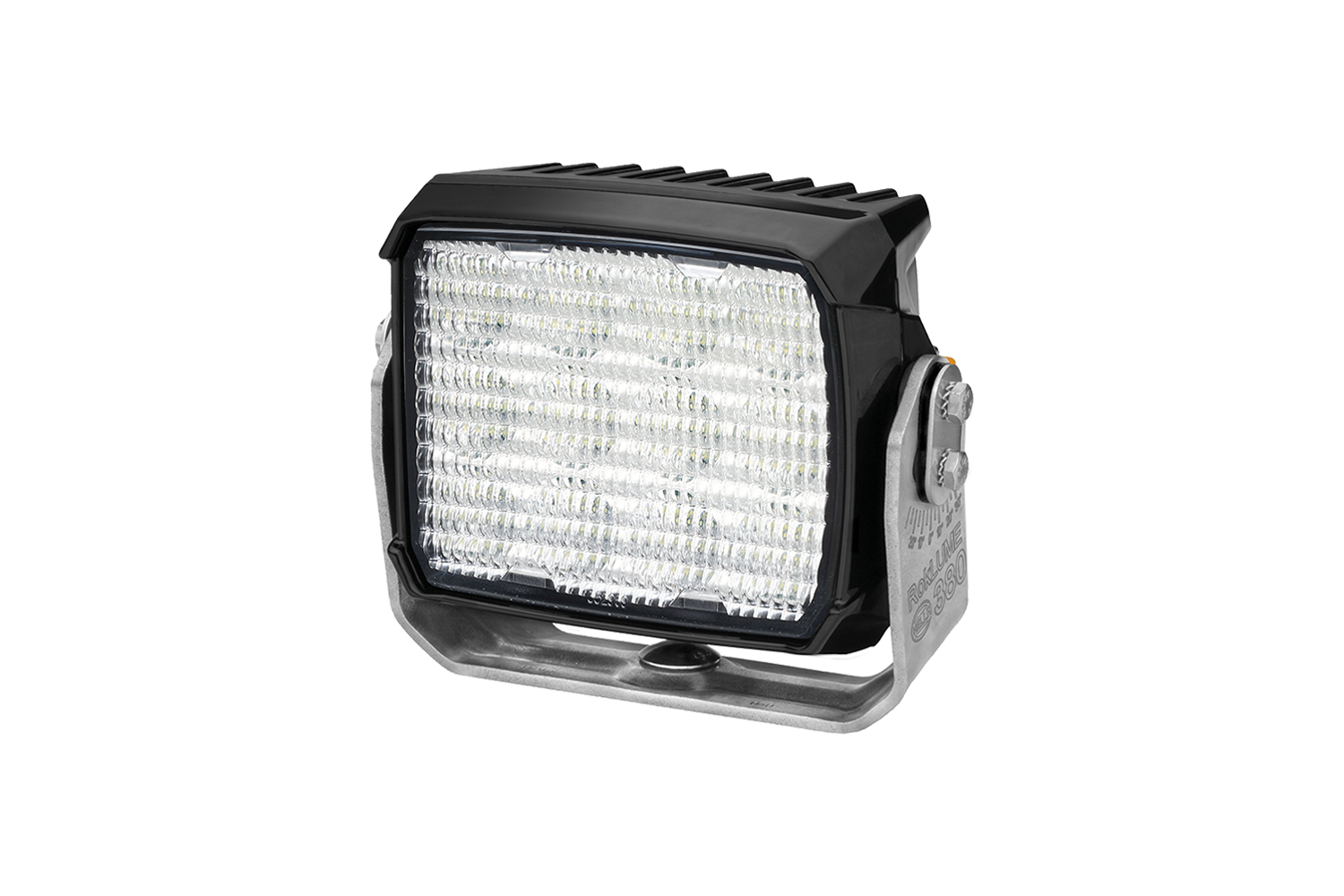

Photo of the extra-wide illumination of the RokLUME 380N
Photo of the long-range illumination of the RokLUME 380N amber
Photo of the close-range illumination of the RokLUME 380N amber
Photo of the pencil beam illumination of the RokLUME 380N amber
Photo of the extra-wide illumination of the RokLUME 380N amber
Dimensional sketch of the RokLUME 380N

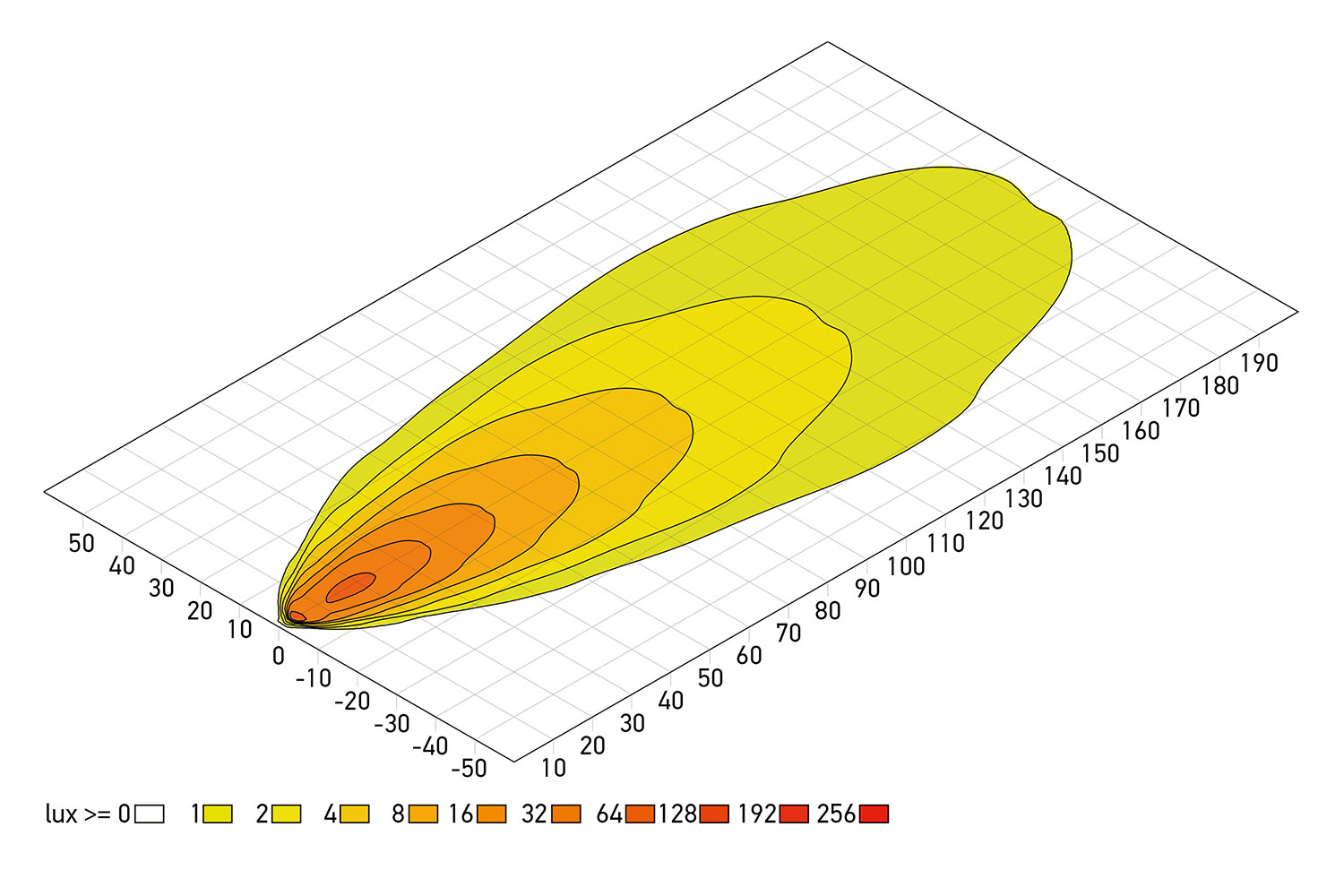

Light distribution of the long-range illumination of the RokLUME 380N
Light distribution of the close-range illumination of the RokLUME 380N
Light distribution of the ZEROGLARE illumination of the RokLUME 380N
Technical Data
| Work lamp | Auxiliary headlamp | |
|---|---|---|
| Operating voltage | Single-voltage (20-30 V) | Single-voltage (9-16 V) or (20-30 V) |
| Rated voltage | 24 V | 12 V or 24 V |
| Power consumption | Max. 84 W | Max. 85 W |
| Light output | up to 7,800 lm | |
| Light source | LED | |
| Colour temperature | Standard: 5,000 K Amber: 1,800 K |
5,000 K |
| Material | Housing: die-cast aluminium, NanoSafe coating Cover lens: hard-coated plastic |
|
| Weight | 2,200 g | 2,155 g |
| Temperature range | -40 °C to +85 °C | |
| Protection class | IP 6K9K, IP 6K8 | |
| Type approval | ECE-R112.01, Class B, high-beam Ref. 40 | |
| EMC protection | ECE-R10, RCM,CISPR 25 | ECE-R10, RCM |
| Salt spray resistance | 1,000 h as per DIN EN ISO 9227 | |
| Mounting | Upright and pendant | |
| Connection | 300 mm cable with DEUTSCH DT 2 pin connector, DEUTSCH DT 2 pin counterpart enclosed | |
Program Overview
| Illumination | Cover lens colour | Bracket | Part number |
|---|---|---|---|
| Close-range illumination | Clear | Heavy duty | 1GA 996 197-011 |
| Amber | Heavy duty | 1GA 996 197-061 | |
| Long-range illumination | Clear | Heavy duty | 1GA 996 197-021 |
| Amber | Heavy duty | 1GA 996 197-071 | |
| ZEROGLARE illumination | Clear | Heavy duty | 1GA 996 197-001 |
| Special bracket* | 1GA 996 197-191 | ||
| Amber | Heavy duty | 1GA 996 197-051 | |
| Pencil beam illumination | Clear | Heavy duty | 1GA 996 197-041 |
| Special bracket* | 1GA 996 197-201 | ||
| Amber | Heavy duty | 1GA 996 197-091 | |
| Extra-wide illumination | Clear | Heavy duty | 1GA 996 197-031 |
| Amber | Heavy duty | 1GA 996 197-081 |

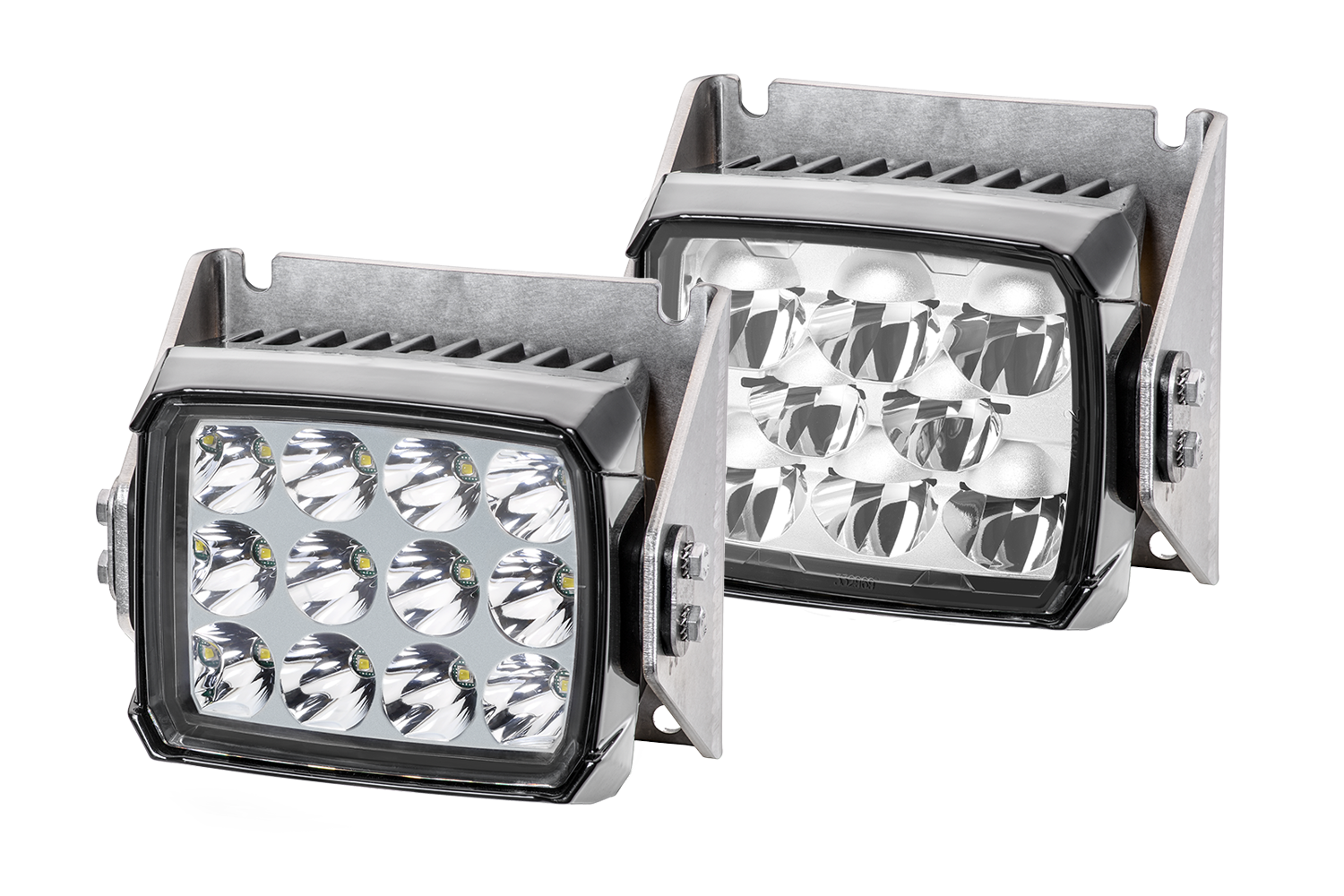

*for Komatsu electric Mining Trucks 730E – 980E
Auxiliary headlamps
| Rated voltage | Cover lens colour | Bracket | Part number |
|---|---|---|---|
| 12 V | Clear | Heavy duty, black coated | 1FA 996 197-151 |
| 24 V | Clear | Heavy duty | 1FA 996 197-181 |
