K-LED Blizzard
Robust beacon: The HELLA K-LED Blizzard beacon is the successor to the popular HELLA K-LED-FO and convinces both externally and with internal features: stronger, more robust, more cost-effective.
The new beacon’s design is visually based on the popular K-LED-FO, and impresses with its attractive styling with transparent dome and compact housing.
The K-LED Blizzard incorporates state-of-the-art LED technology and a lot of HELLA expertise. The double flash signal of the highly efficient amber LEDs is generated without moving parts and brings maximum warning effect. Up to four beacons can be synchronized with each other.
Due to the absence of moving parts and the highly robust construction, the K-LED Blizzard is extremely resilient and durable. It is dustproof, high-pressure jet cleaner resistant, and can withstand even brief submersion underwater.
Depending on the version, mounting can be either fixed, by magnet mounting, or via a pipe socket. With the flexible pipe socket variant, strong impacts are effectively cushioned and the lamp automatically returns to its original position.
Robust beacon: The HELLA K-LED Blizzard beacon is the successor to the popular HELLA K-LED-FO and convinces both externally and with internal features: stronger, more robust, more cost-effective.
The new beacon’s design is visually based on the popular K-LED-FO, and impresses with its attractive styling with transparent dome and compact housing.
The K-LED Blizzard incorporates state-of-the-art LED technology and a lot of HELLA expertise. The double flash signal of the highly efficient amber LEDs is generated without moving parts and brings maximum warning effect. Up to four beacons can be synchronized with each other.
Due to the absence of moving parts and the highly robust construction, the K-LED Blizzard is extremely resilient and durable. It is dustproof, high-pressure jet cleaner resistant, and can withstand even brief submersion underwater.
Depending on the version, mounting can be either fixed, by magnet mounting, or via a pipe socket. With the flexible pipe socket variant, strong impacts are effectively cushioned and the lamp automatically returns to its original position.

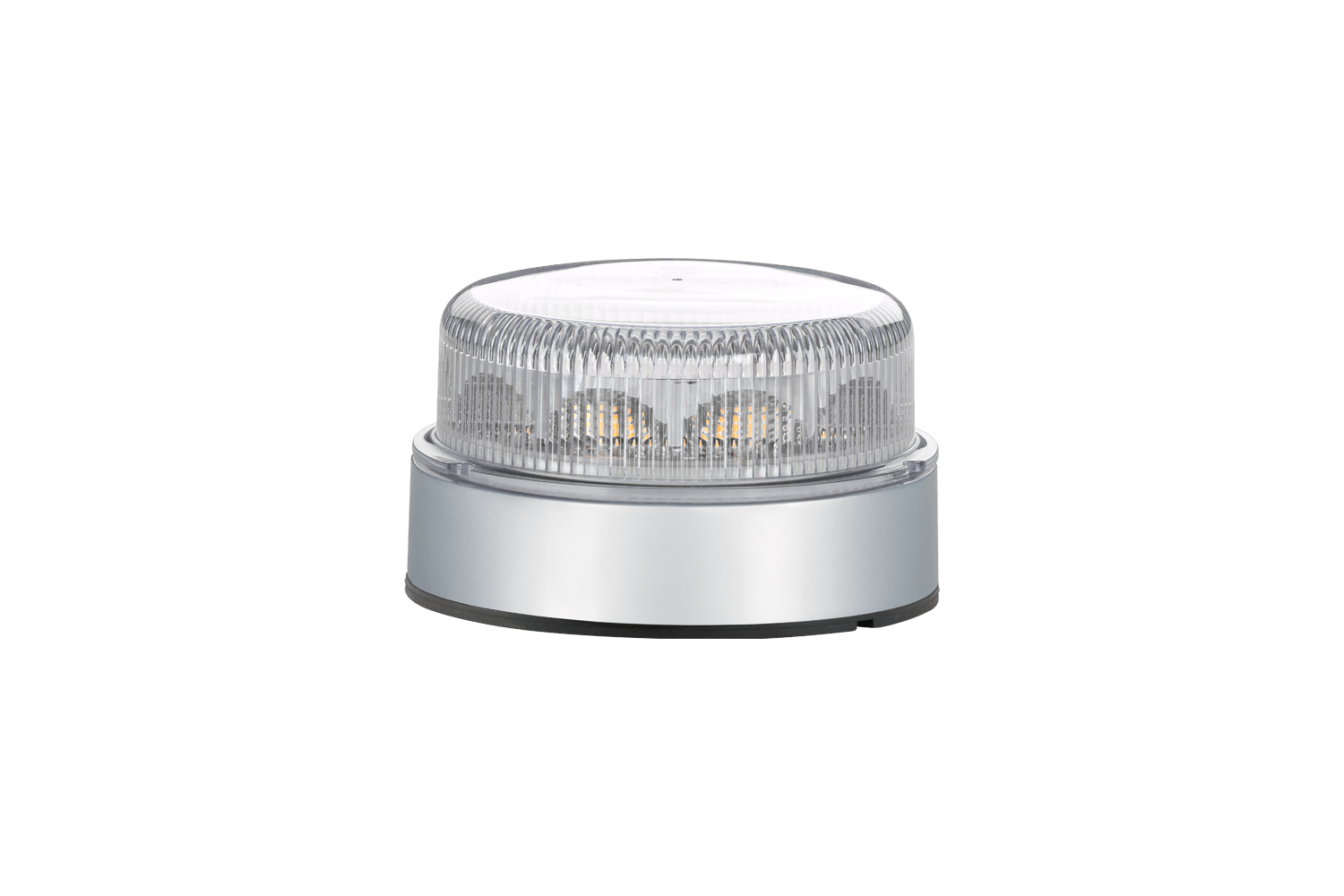

The K-LED Blizzard as a fixed-mount variant.

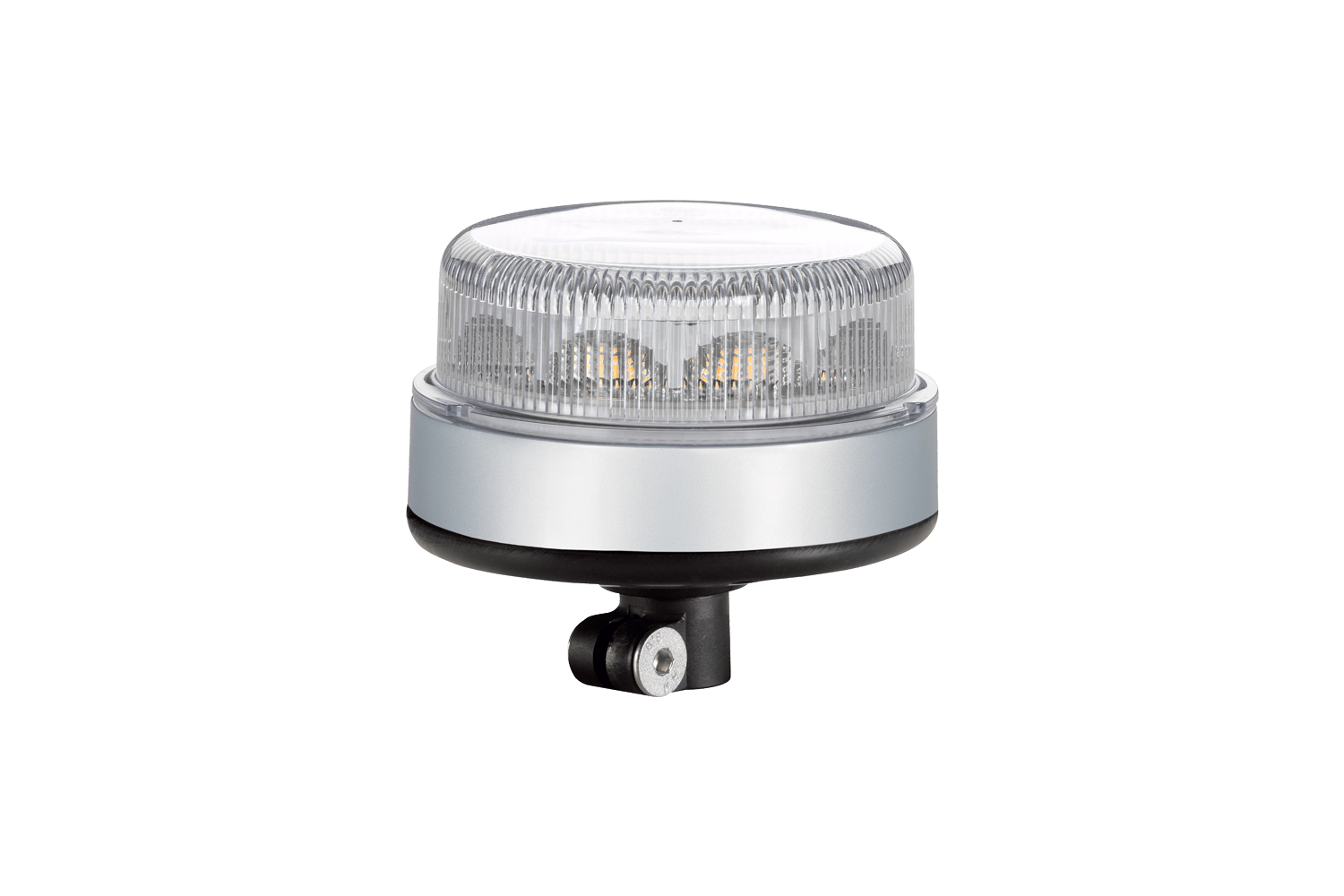

The flexible pipe socket variant of the K-LED Blizzard.

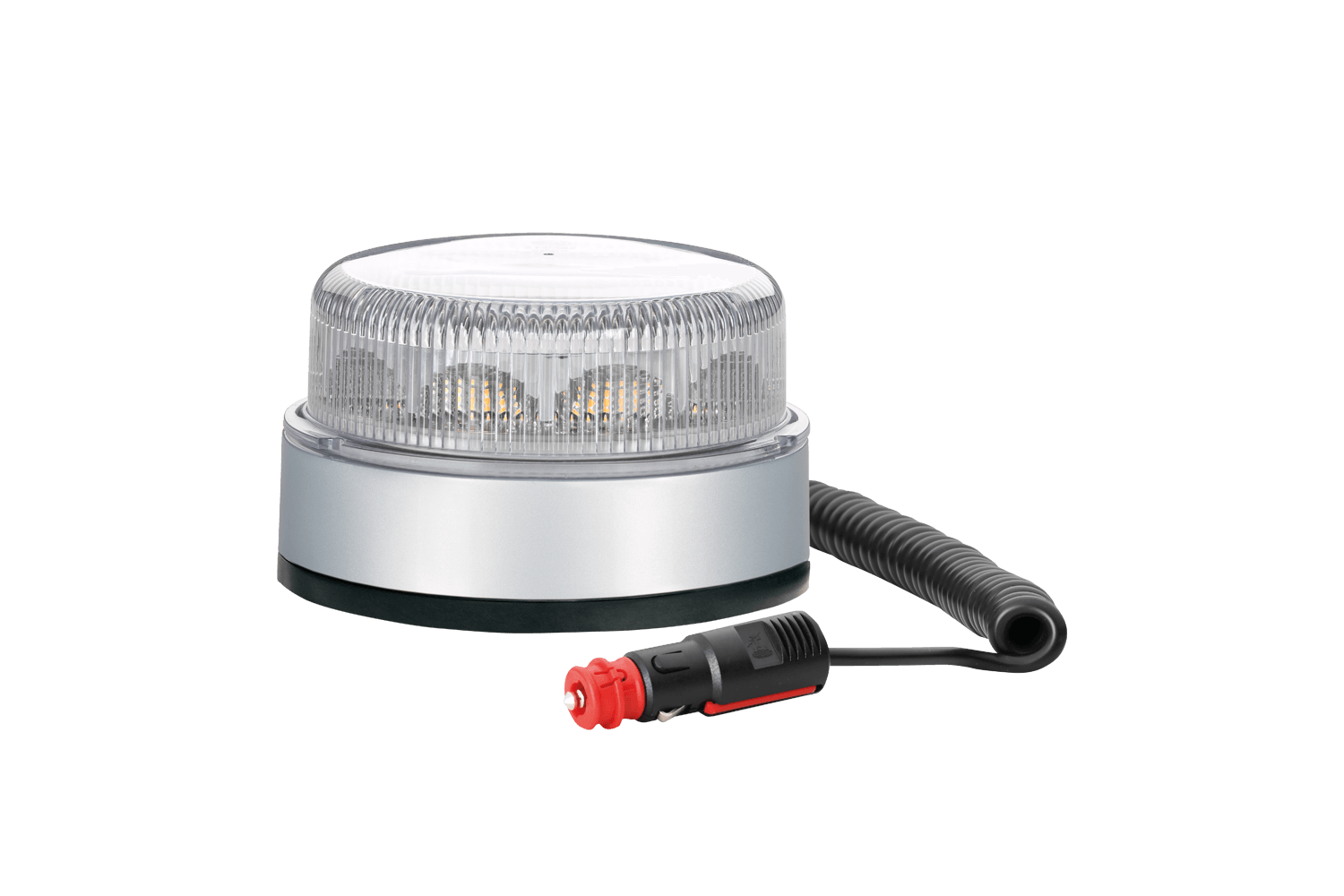

The K-LED Blizzard with magnetic mounting.
This technical drawing shows the fixed mounting of the beacon.

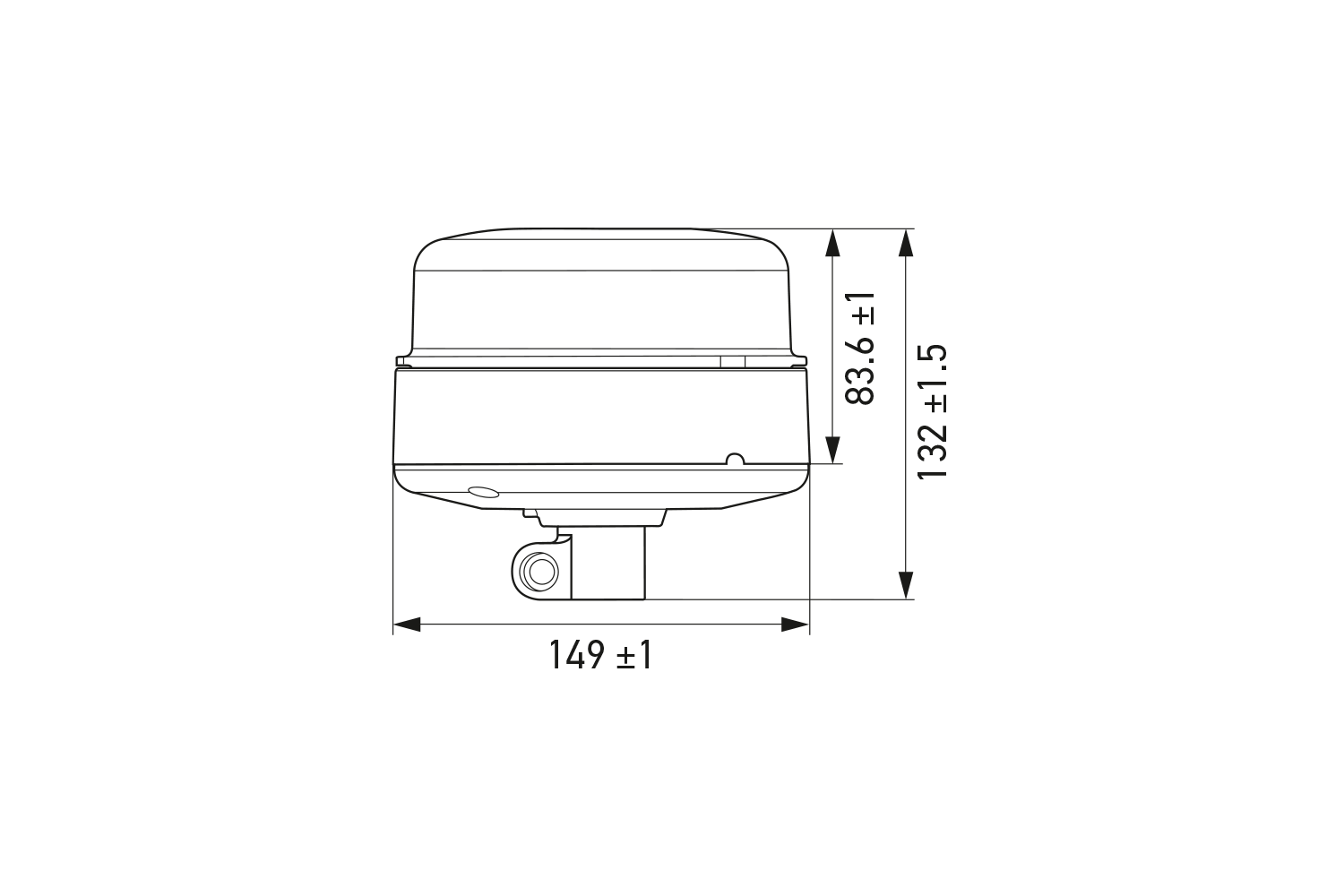

This technical drawing shows the K-LED Blizzard with flexible pipe socket mounting.
This technical drawing shows the magnet version of the K-LED Blizzard.
K-LED Blizzard video
Technical Data
| Operating voltage | Multi-voltage (10 – 30 V) |
| Rated voltage | 12 V/ 24 V |
| Current consumption | 1.3 A (12 V) 0.7 A (24 V) |
| Power consumption | Ø 16 W Max. 48 W |
| Light source | LED |
| Material | Polycarbonate, aluminum |
| Temperature range | -40 °C to +60 °C |
| Protection class | IP 67, IP 6X9K |
| Type approval | ECE-R65 TA1 |
| EMC protection | ECE-R10, CISPR 25 class 5 |
| Permitted speed for magnet version | Max. 120 km/h |
Program Overview
| Type of mounting | Part number |
|---|---|
| Fixed attachment (F) | 2XD 012 980-001 |
| Flexible pipe socket mounting (FL) | 2XD 012 980-011 |
| Magnet mounting (M) | 2XD 012 980-021 |
