LED Light Bar 470
Strong companions: The HELLA LED Light Bar 470 work lamps combine a robust design and powerful illumination. They are ideal for demanding applications.
One highlight is the ability to choose between two brightness levels. Depending on whether the illumination is distributed in the close-range, long-range, or as a diffuse flood in the working area, the 100% setting generates up to 3,600 lumens (diffuse flood), with a power consumption of no more than 36 W. The 10% position is ideal for reducing current consumption during extended operation. A special off-road variant with combined close-range and long-range illumination is also available (Combi).
The robust housing and cover lens made of the high-tech material Grilamid® can withstand even heavy loads and are resistant to shocks and vibrations. The lamps are dustproof, waterproof, and high-pressure jet cleaner resistant.
The multi-voltage-capable electronics ensure constant brightness, even in the event of voltage fluctuations. Upright or pendant surface mounting is possible. The lamp can be swiveled axially.
Strong companions: The HELLA LED Light Bar 470 work lamps combine a robust design and powerful illumination. They are ideal for demanding applications.
One highlight is the ability to choose between two brightness levels. Depending on whether the illumination is distributed in the close-range, long-range, or as a diffuse flood in the working area, the 100% setting generates up to 3,600 lumens (diffuse flood), with a power consumption of no more than 36 W. The 10% position is ideal for reducing current consumption during extended operation. A special off-road variant with combined close-range and long-range illumination is also available (Combi).
The robust housing and cover lens made of the high-tech material Grilamid® can withstand even heavy loads and are resistant to shocks and vibrations. The lamps are dustproof, waterproof, and high-pressure jet cleaner resistant.
The multi-voltage-capable electronics ensure constant brightness, even in the event of voltage fluctuations. Upright or pendant surface mounting is possible. The lamp can be swiveled axially.
Photo of the long-range illumination of the LED Light Bar 470
Photo of the close-range illumination of the LED Light Bar 470
Photo of the combination illumination of the LED Light Bar 470
Photo of the diffuse flood illumination of the LED Light Bar 470
Dimensional sketch of the long-range and close-range illumination of the LED Light Bar 470
Dimensional sketch of the combination illumination of the LED Light Bar 470
Dimensional sketch of the diffuse flood illumination of the LED Light Bar 470

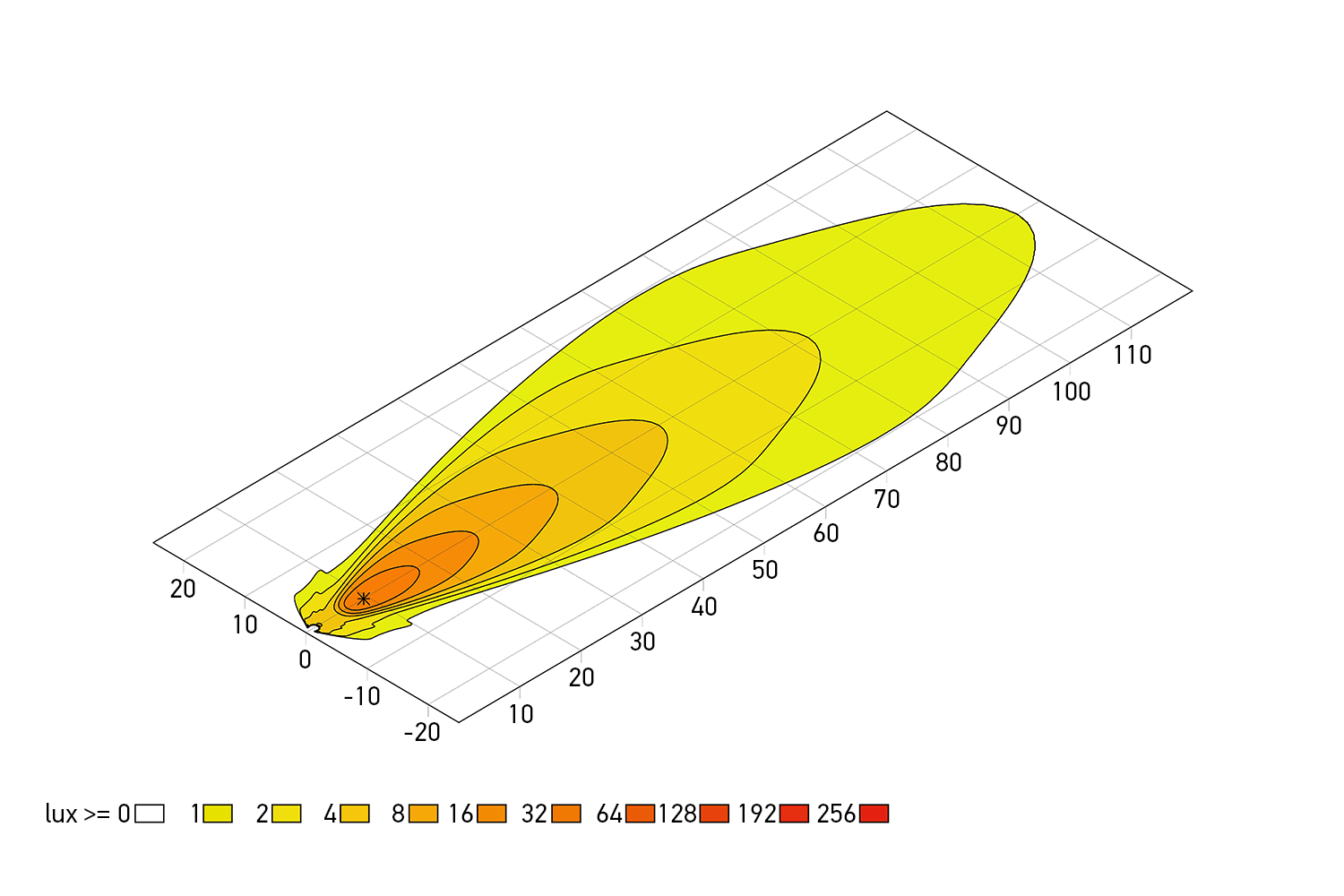

Light distribution of the long-range illumination of the LED Light Bar 470
Light distribution of the close-range illumination of the LED Light Bar 470
Light distribution of the diffuse flood illumination of the LED Light Bar 470
Technical Data
| Long-range and close-range |
Combi | Diffuse flood | |
|---|---|---|---|
| Operating voltage | Multi-voltage (9-32 V) | ||
| Rated voltage | 12 V/ 24 V | ||
| Power consumption |
36 W (100%) |
36 W (combined) |
36 W (100%) |
| Light output |
2,800 lm (100%) |
2,200 lm |
3,600 lm (100%) |
| Light source | LED | ||
| Colour temperature | 5,000 K | ||
| Material |
Housing: heat conductive plastic |
||
| Weight | 990 g | 995 g | 930 g |
| Temperature range | -40 °C to +60 °C | ||
| Protection class | IP 6K9K, IP 6K7 | ||
| EMC protection | ECE-R10, RCM | ||
| Mounting | Upright and pendant | ||
| Connection | 2,500 mm cable | ||
Program Overview
| Illumination | Part number |
|---|---|
| Close-range illumination | 1GJ 958 130-621 |
| Long-range illumination | 1GJ 958 130-651 |
| Combination illumination | 1GJ 958 130-461 |
| Diffuse flood illumination | 1GJ 958 130-521 |
