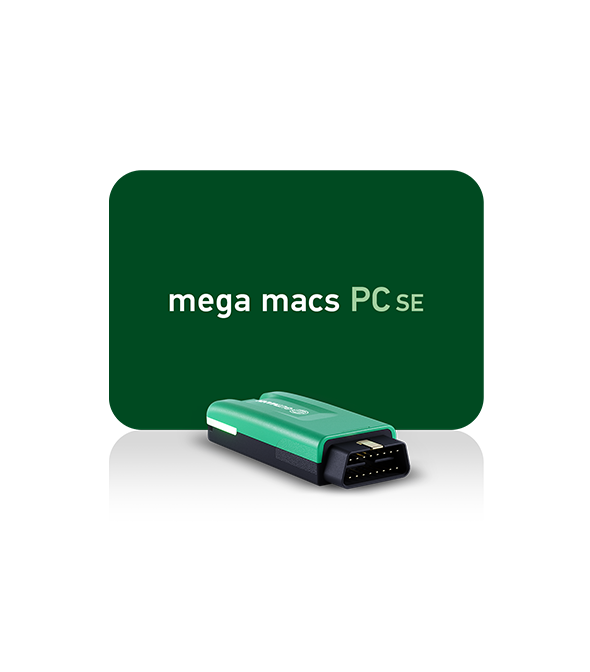

mega macs PC SE

The diagnostic upgrade for your workshop computer | mega macs PC SE is the Windows-based diagnostic solution with wide-ranging services at an attractive price.

The diagnostic upgrade for your workshop computer

mega macs PC SE enables fast and precise diagnosis of vehicle faults, clear visualisation of important parameters, functionality checks of control units, adjustment of vehicle functions and also simple carrying out of maintenance work and service resets.

The most important functions at a glance:

  • Diagnostics on vehicles with DoIP/CAN FD protocol
  • Reading and deleting error codes on all control units
  • Parameter display with graphics and explanation (8 parameters)
  • Actuator test
  • Service resets for all systems
  • Coding and basic setting
  • Wireless communication
  • Fast and clear vehicle identification via VIN
  • Comprehensive technical data and diagnostics in one solution
  • Integrated circuit diagrams, fuses/relays, labour rates, timing belt data, etc. *
  • Regular updates*
  • and much more.

* Available with Repair Plus Light licence

System requirements
MinimumAt least Microsoft Windows 10 (32/64 bit) or higher
HardwareAt least 512 MB free RAM, at least 2 GB free
hard disk space, at least 1 free USB port, recommended
screen resolution at least 800x600px
PC VCI
Dimensions110 x 50 x 26 mm (L x W x H)
InterfacesMicro-USB, Bluetooth®
Range inside3 – 10 m
Range outsideup to a maximum of 50 m
Data transmission rateBmax. 3 Mbit/s
Frequency band2.4 GHz
Outside air temperature for working area0 – 45 °C / recommended: 10 – 35 °C
Voltage OBD8 - 32 V DC
Current OBDmax. 350 mA
Voltage USB5 V DC
Current USBmax. 500 mA
Outside air temperature for working area0 to +45°C
Storage temperature-20 °C to +60 °C
Dimensions (L x W x H)115.5 x 47.5 x 24 mm
Weight100 g
Protection classIP40
Frequency band2400 to 2483.5 MHz (Bluetooth®)
Field strength11 dBm
InterfacesBluetooth® Classic, Class 1, USB 2.0 Hi-Speed, Type C connector, CARB
Bluetooth® rangeInside: 3 to 10 m, outside: up to max. 50 m

Downloads suitable for the mega macs PC SE

DoIP and CAN FD in detail

DoIP (Diagnostics over Internet Protocol) is a communication protocol for automotive electronics. It enables flexible and powerful diagnosis of the systems. The diagnostic information taken from modern vehicles can be transmitted via the internet protocol (DoIP). This is particularly relevant for newer vehicle models whereby communication between the vehicle and the diagnostics takes place via this standardised protocol.

CAN FD

CAN FD is a further development of the CAN data protocol and it enables vehicle manufacturers to achieve, for example, higher transmission speeds and more robust data communication between various control units in any one vehicle.

Diagnostics made simple and flexible

Diagnostics made simple and flexible

With mega macs PC SE, workshops retain maximum compatibility and flexibility. They also save money by using their own Windows end device (e.g. tablet or laptop). The simple installation and intuitive operation ensure quick entry and familiarisation. From vehicle servicing to ADAS calibration, mega macs PC SE offers wide-ranging application options – all with just one device.

Surely you don’t need even more punchy power?

Surely you don’t need even more punchy power?

With mega macs PC SE, workshops are ideally equipped to carry out efficient and precise diagnoses and to offer their customers a first-class service. Depending on the scope or the licence, owners of the mega macs PC SE have access to technical data and background information. They also have direct access to component aids, inspection data, timing belt data, circuit diagrams and, furthermore, they benefit from the technical support provided by the Hella Gutmann Service Team that boasts over 30 years of diagnostic experience.
